SPARE PARTS ViscoTwin 104-G7 MAINTENANCE LEVEL 2

SPARE PARTS ViscoTwin 104-G7 MAINTENANCE LEVEL 2, NOVEMBER 2021
SPARE PARTS ViscoTwin 104-G7 MAINTENANCE LEVEL 2, NOVEMBER 2021
18826
Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --
Add
23113
Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: Hex Style
Notes: --
Add
12505
O-Ring for Pump Face_VT104_G7, G8, G9
Pos. 2192
Material: FKM
Specification / Size: DIN3771, 153.5x4.0
Notes: --
Add
12511
O-Ring for Pump Face_VT104_G7, G8, G9
Pos. 2192
Material: EPDM
Specification / Size: DIN3771, 153.5x4.0
Notes: --
Add
12504
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add
12510
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add
12616
Dowel Pin for Pump Face & Housing_VT70, VT104, VT130_G7, G8, G9
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --
Add
21811
Spindle Left Handed G7, G8 VT104.27SEH
Pos. 2200
Material: 316L
Specification / Size: 27mm, EH, Standard
Notes: --
Add
21812
Spindle Left Handed_G7, G8_VT104.27S3A
Pos. 2200
Material: 316L
Specification / Size: 27mm, 3A, Standard
Notes: --
Add
21813
Spindle Left Handed_G7, G8_VT104.27HEH
Pos. 2200
Material: 316L
Specification / Size: 27mm, EH, Hardened
Notes: --
Add
21814
Spindle Left Handed_G7, G8_VT104.27H3A
Pos. 2200
Material: 316L
Specification / Size: 27mm, 3A, Hardened
Notes: --
Add
12633
Spindle Left Handed_G7, G8_VT104.36SEH
Pos. 2200
Material: 316L
Specification / Size: 36mm, EH, Standard
Notes: --
Add
14258
Spindle Left Handed_G7, G8_VT104.36S3A
Pos. 2200
Material: 316L
Specification / Size: 36mm, 3A, Standard
Notes: --
Add
14256
Spindle Left Handed_G7, G8_VT104.36HEH
Pos. 2200
Material: 316L
Specification / Size: 36mm, EH, Hardened
Notes: --
Add
17547
Spindle Left Handed_G7, G8_VT104.36H3A
Pos. 2200
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
12632
Spindle Left Handed_G7, G8_VT104.53SEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Standard
Notes: --
Add
12626
Spindle Left Handed_G7, G8_VT104.53SEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
14254
Spindle Left Handed_G7, G8_VT104.53HEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
19980
Spindle Left Handed_G7, G8_VT104.53H3A
Pos. 2200
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
21817
Spindle Right Handed_G7, G8_VT104.27SEH
Pos. 2201
Material: 316L
Specification / Size: 27mm, EH, Standard
Notes: --
Add
21818
Spindle Right Handed_G7, G8_VT104.27S3A
Pos. 2201
Material: 316L
Specification / Size: 27mm, 3A, Standard
Notes: --
Add
21819
Spindle Right Handed_G7, G8_VT104.27HEH
Pos. 2201
Material: 316L
Specification / Size: 27mm, EH, Hardened
Notes: --
Add
21820
Spindle Right Handed_G7, G8_VT104.27H3A
Pos. 2201
Material: 316L
Specification / Size: 27mm, 3A, Hardened
Notes: --
Add
12635
Spindle Right Handed_G7, G8_VT104.36SEH
Pos. 2201
Material: 316L
Specification / Size: 36mm, EH, Standard
Notes: --
Add
14260
Spindle Right Handed_G7, G8_VT104.36HEH
Pos. 2201
Material: 316L
Specification / Size: 36mm, EH, Hardened
Notes: --
Add
17545
Spindle Right Handed_G7, G8_VT104.36H3A
Pos. 2201
Material: 316L
Specification / Size: 36mm, 3A, Hardened
Notes: --
Add
12634
Spindle Right Handed_G7, G8_VT104.53SEH
Pos. 2201
Material: 316L
Specification / Size: 53mm, EH, Standard
Notes: --
Add
12627
Spindle Right Handed_G7, G8_VT104.53S3A
Pos. 2201
Material: 316L
Specification / Size: 53mm, 3A, Standard
Notes: --
Add
21806
Spindle Right Handed_G7, G8_VT104.53HEH
Pos. 2201
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
19981
Spindle Right Handed_G7, G8_VT104.53H3A
Pos. 2201
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
12503
O-Ring Seal Housing_VT104_G7, G8, G9
Pos. 1088
Material: FKM
Specification / Size: DIN3771, 142x6.2mm
Notes: --
Add
12512
O-Ring Seal Housing_VT104_G7, G8, G9
Pos. 1088
Material: EPDM
Specification / Size: DIN3771, 142x6.2mm
Notes: --
Add
22120
Elastomer Kit SAMS_VT104_G7
Pos. 2261 BF
Material: FKM
Specification / Size: ANGA, SD: 45mm
Notes: --
Add
22121
Elastomer Kit SAMS_VT104_G7
Pos. 2261 BF
Material: EPDM
Specification / Size: ANGA, SD: 45mm
Notes: --
Add
12367
Elastomer Kit SAMS_VT104_G7
Pos. 2261 BF
Material: FKM
Specification / Size: HUHNSEAL, SD: 45mm
Notes: --
Add
12368
Elastomer Kit SAMS_VT104_G7
Pos. 2261 BF
Material: EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Notes: --
Add
19440
Elastomer Kit DAMS_VT104_G7
Pos. 2261 BC
Material: EPDM
Specification / Size: ANGA, SD: 45mm
Notes: --
Add
12521
Elastomer Kit DAMS_VT104_G7
Pos. 2261 BC
Material: FKM
Specification / Size: HUHNSEAL, SD: 45mm
Notes: --
Add
12522
Elastomer Kit DAMS_VT104_G7
Pos. 2261 BC
Material: EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Notes: --
Add

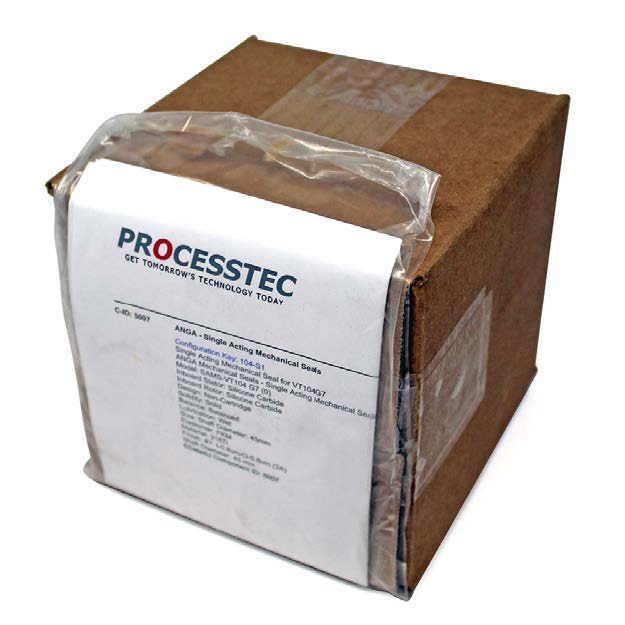

5007
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: SIC/SIC FKM, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S3
Notes: --
Add
6676
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S3
Notes: --
Add
6667
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S4
Notes: --
Add
6677
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S4
Notes: --
Add
11458
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: S1
Notes: --
Add
12359
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: S1
Notes: --
Add
12360
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: S2
Notes: --
Add
12362
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: S2
Notes: --
Add
12361
Mechanical Seal SAMS_VT104_G7
Pos. 1303 BF
Material: TuC/TuC
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: SX2
Notes: --
Add
16749
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D3
Notes: --
Add

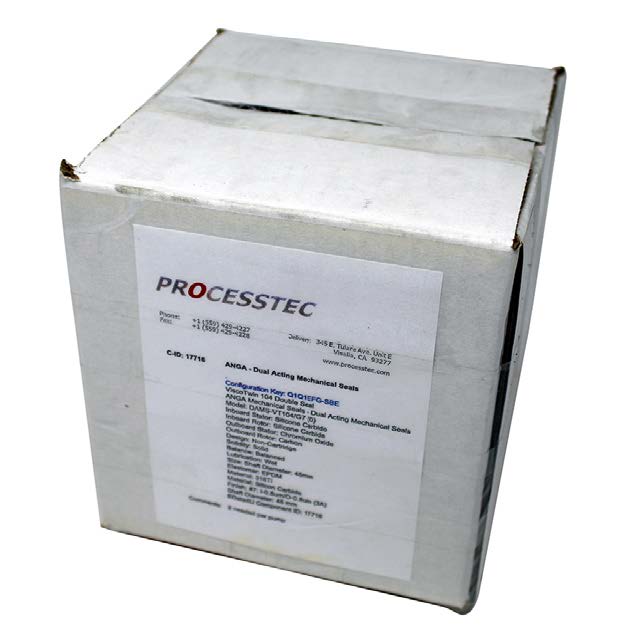

17716
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D3
Notes: --
Add
19441
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D4
Notes: --
Add
19445
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D4
Notes: --
Add
5012
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: D1
Notes: --
Add
19279
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: D1
Notes: --
Add
12363
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: D2
Notes: --
Add
11440
Mechanical Seal DAMS_VT104_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 45mm
Customer Reference: D2
Notes: --
Add
12529
Shaft Sealing Ring Bearing Housing_VT104_G7
Pos. 1111
Material: FKM
Specification / Size: DIN3760-AS, 50x72x8
Notes: --
Add
12492
Flat Gasket Gear Housing_VT104_G7
Pos. 2198
Material: --
Specification / Size: 1mm
Notes: --
Add
12530
Shaft Sealing Ring Gear Housing_VT104_G7
Pos. 1010
Material: FKM
Specification / Size: DIN3760-AS, 32x45x8
Notes: --
Add
21766
Oil Level Sight Gauge_VT70, VT104, VT130_G7, G8, G9
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --
Add
18756
Magnetic Screw Plug_VT70, VT104, VT130_G7
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G1/2"
Notes: --
Add
21871
Gear Oil Bearing Housing VT
Pos. --
Material: --
Specification / Size: 1 L
Notes: --
Add
6739
Coupling Hub Pump_AL100_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL100, BS: 28mm
Notes: --
Add
6740
Coupling Hub Motor_AL110_G7
Pos. 2248
Material: Aluminium
Specification / Size: AL110, BS: 28mm
Notes: --
Add
16553
Coupling Hub Pump_AL150_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL150, BS: 28mm
Notes: --
Add
Various Coupling Hub Motor
various
Pos. 2248
Material: Aluminium
Specification / Size: variable
Notes: Size might change due to motor size
Add
various W22 Severe Duty Motor
W22 Severe Duty (VT70, VT104, VT130)
Pos. various
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements
Add
