ViscoTwin Pumps SP VT Frame 6

SPARE PARTS, VT Frame #6

23218

Union Nut Motor Support_F6
Pos. 6012
Material: SS
Specification / Size: --
Notes: --

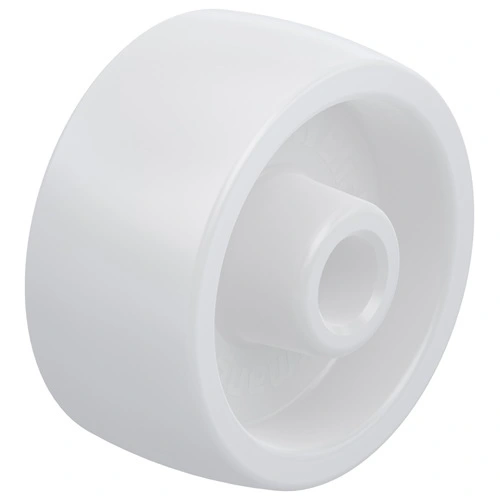

22461

Wheel Motor Support Assembly_F6
Pos. 6016
Material: PA6
Specification / Size: OD60
Notes: Set of two

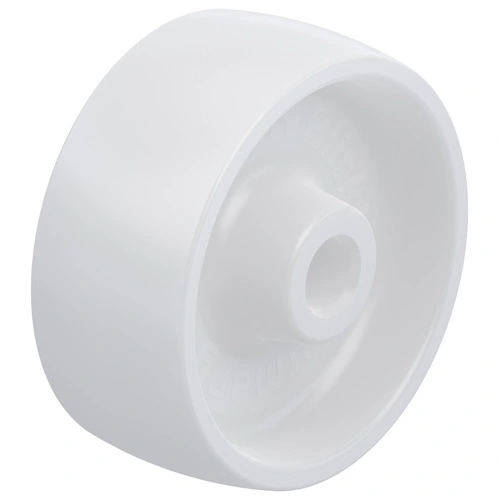

22462

Wheel Motor Support Assembly_F6
Pos. 6016
Material: PA6
Specification / Size: OD75
Notes: Set of two

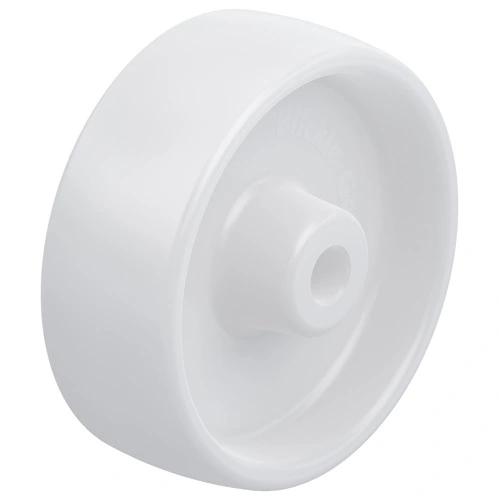

22464

Wheel Motor Support Assembly_F6
Pos. 6016
Material: PA6
Specification / Size: OD100
Notes: Set of two

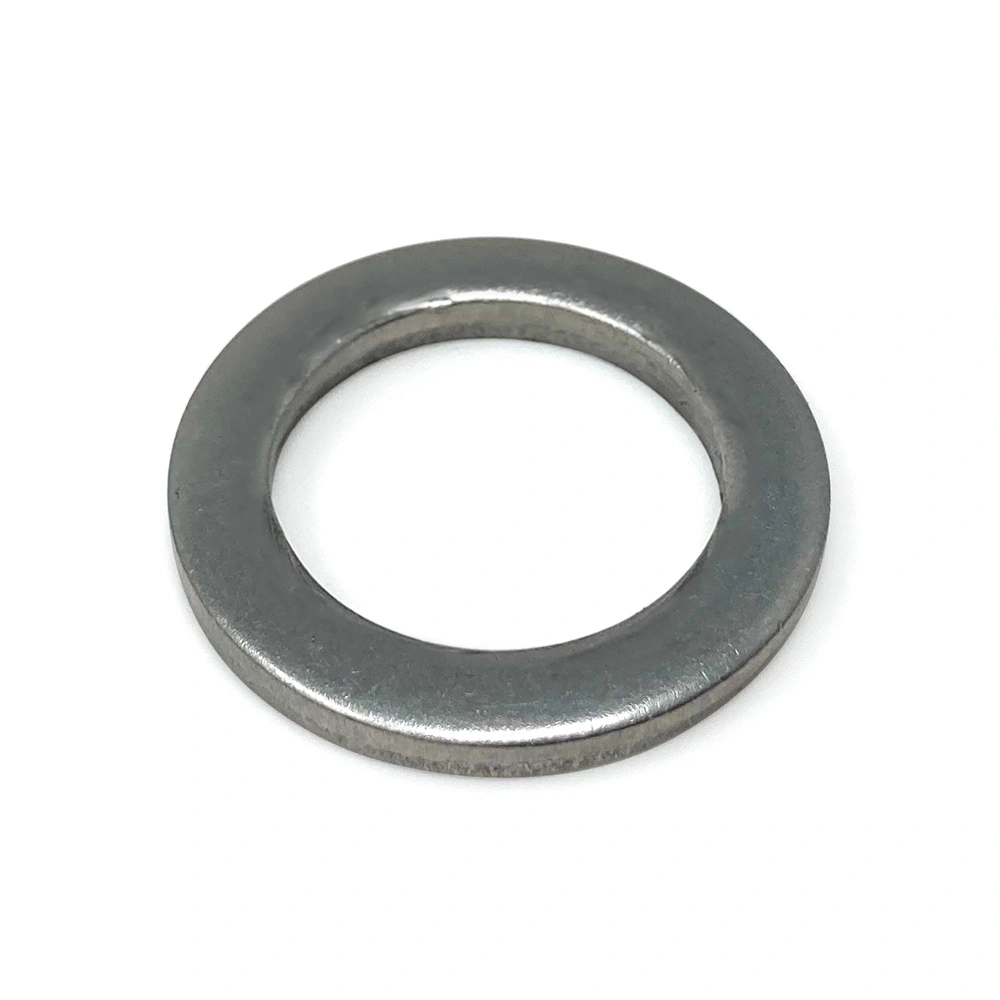

23219

Washer for Motor Wheel Assembly_F6
Pos. 6017
Material: SS
Specification / Size: --
Notes: --

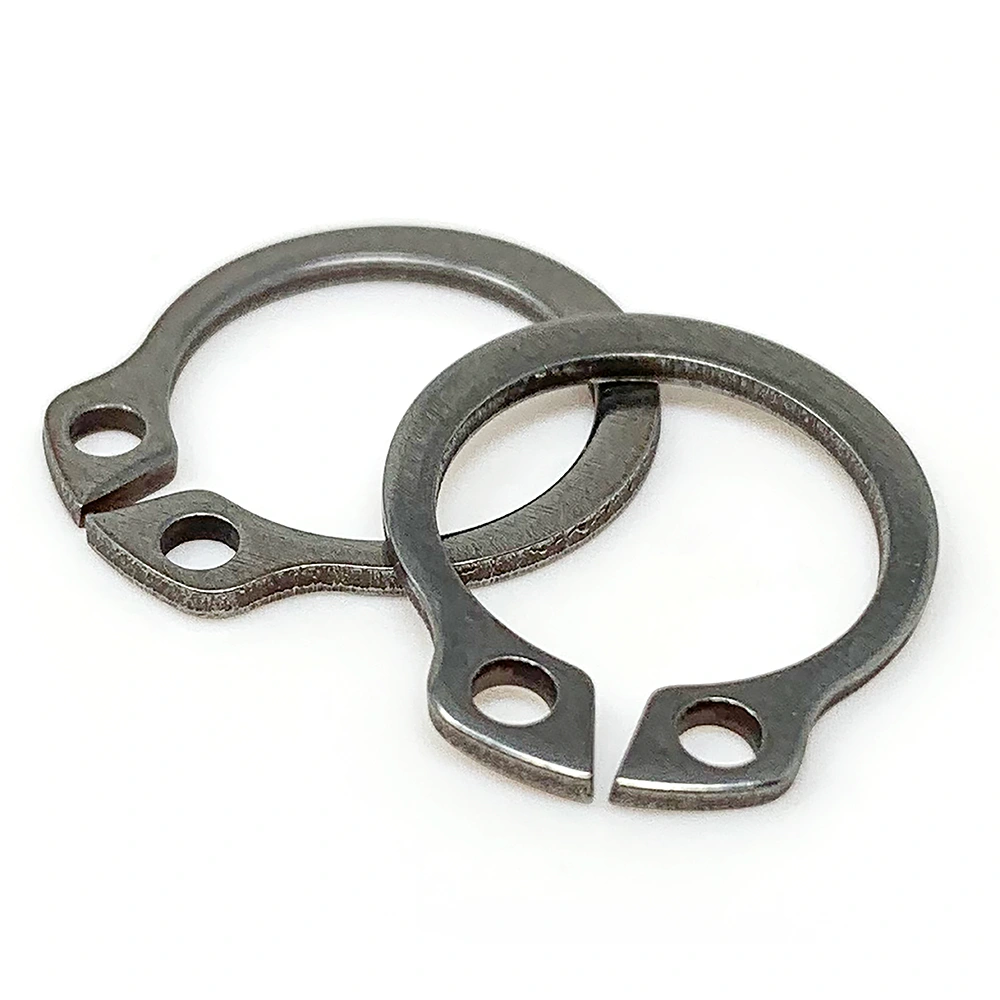

23115

Locking Snap Ring for F6 Axles
Pos. 6018
Material: SS
Specification / Size: 11.5x1mm for OD 12mm
Notes: Set of two

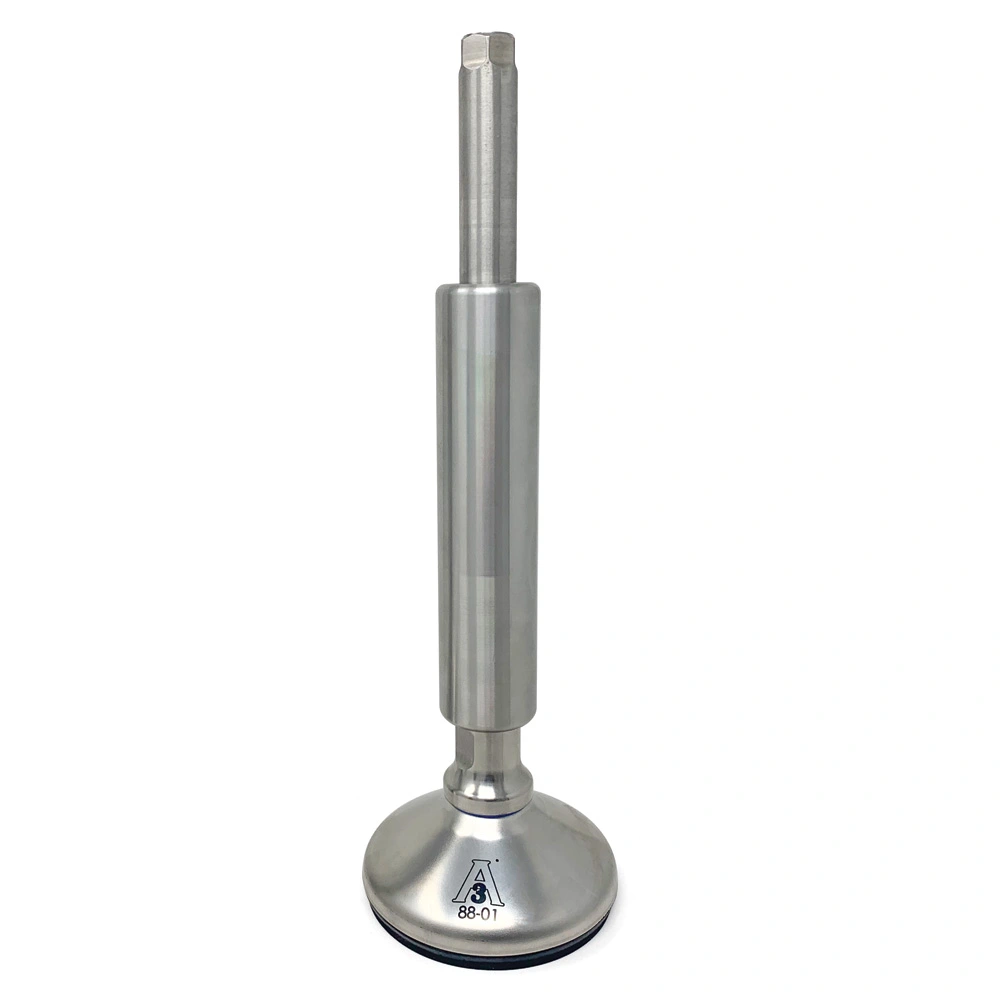

23216

Pump Leg_F6_VT70, VT104, VT130_G7, G8, G9
Pos. 6022
Material: 304
Specification / Size: --
Notes: --

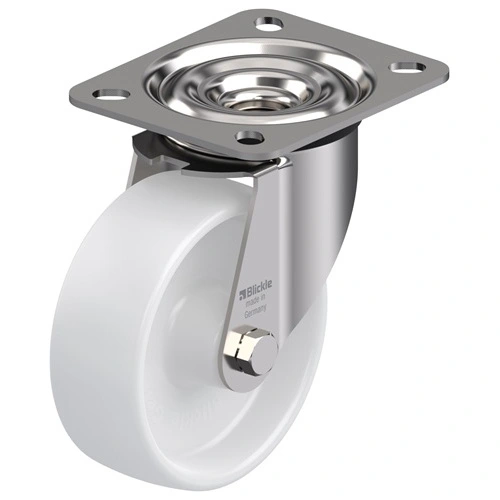

22467

Swivel Wheel Pump Support Assembly_F6
Pos. 6024
Material: 304/PA6
Specification / Size: --
Notes: Set of two

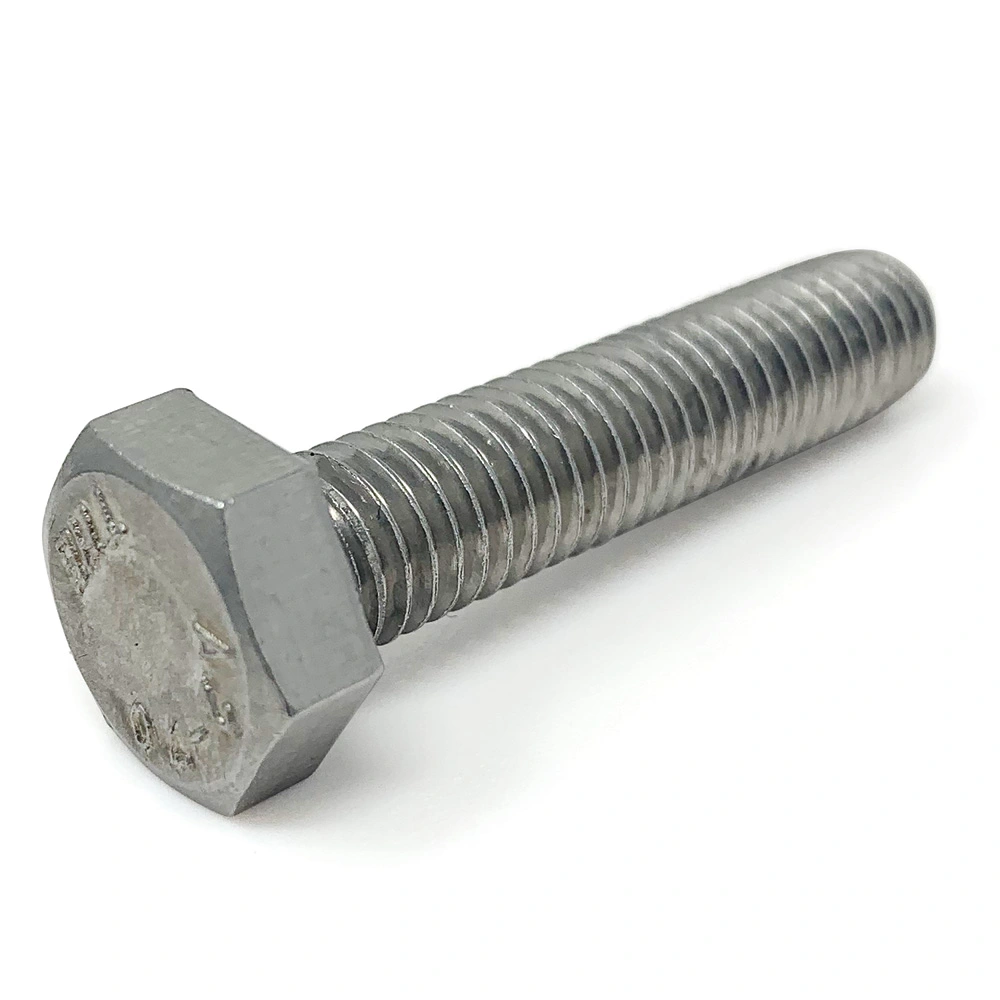

23221

Hex Bolt for Swivel Wheel Assembly_F6_VT104
Pos. 6025
Material: 316
Specification / Size: M8x1.25 - 35mm
Notes: Set of two

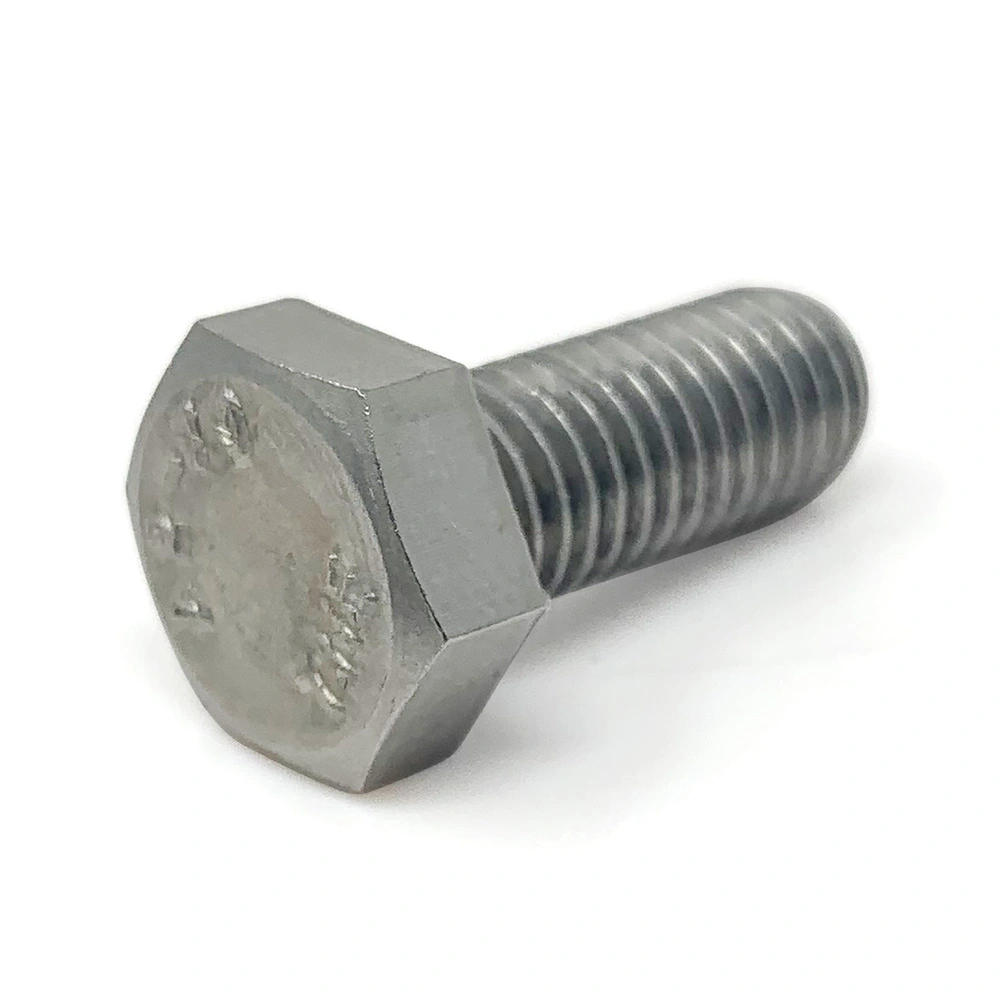

23222

Hex Bolt for Swivel Wheel Assembly_F6_VT130
Pos. 6025
Material: 316
Specification / Size: M8x1.25 - 18mm
Notes: Set of two
