SP VT104 G8 (NG) ML3

Products > ViscoTwin > VT104 Spare Parts
SPARE PARTS, VT104 G8 (NG) ML3  NOVEMBER 2021
Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --
Add
Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: Hex Style
Notes: --
Add
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add
O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: DIN3771, 42x3.0
Notes: --
Add

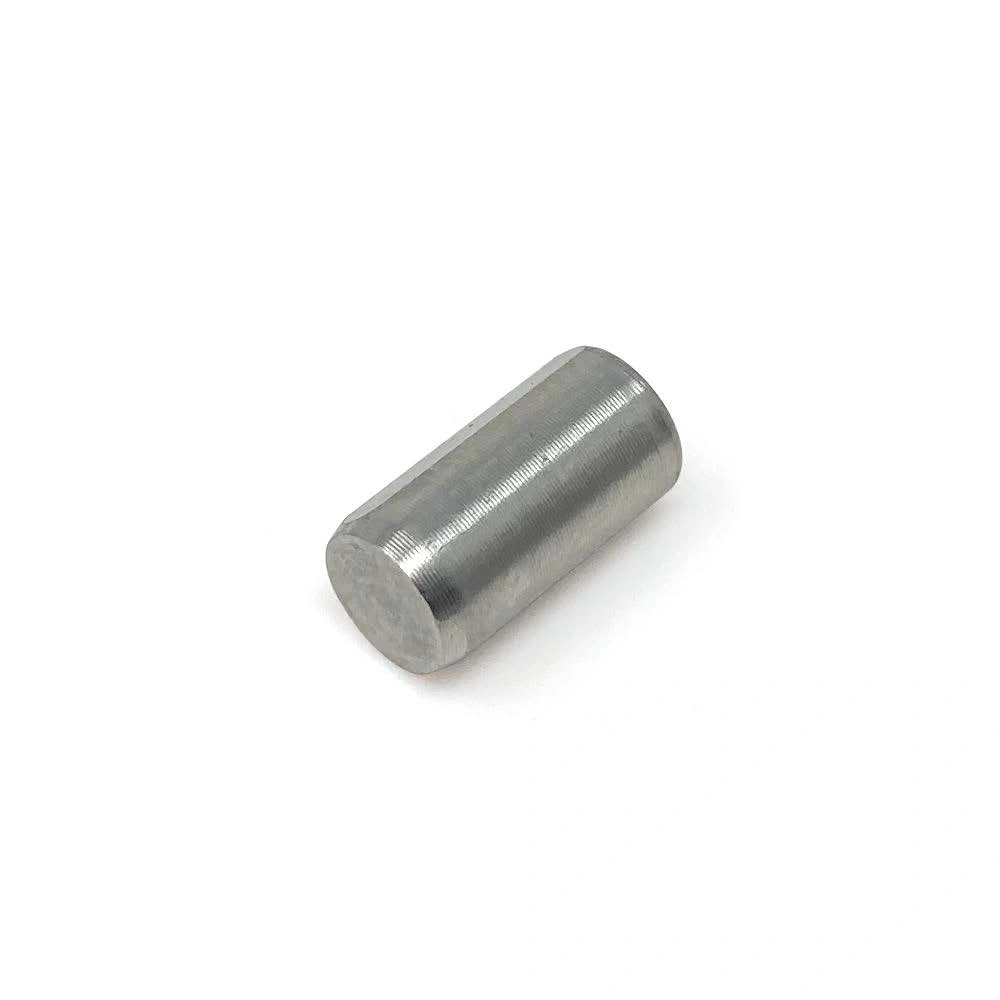

Dowel Pin for Pump Face & Housing_VT70, VT104, VT130_G7, G8, G9
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --
Add
Spindle Left Handed G7, G8 VT104.27SEH
Pos. 2200
Material: 316L
Specification / Size: 27mm, EH, Standard
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.27S3A
Pos. 2200
Material: 316L
Specification / Size: 27mm, 3A, Standard
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.27HEH
Pos. 2200
Material: 316L
Specification / Size: 27mm, EH, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.27H3A
Pos. 2200
Material: 316L
Specification / Size: 27mm, 3A, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.36SEH
Pos. 2200
Material: 316L
Specification / Size: 36mm, EH, Standard
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.36S3A
Pos. 2200
Material: 316L
Specification / Size: 36mm, 3A, Standard
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.36HEH
Pos. 2200
Material: 316L
Specification / Size: 36mm, EH, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.36H3A
Pos. 2200
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.53SEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Standard
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.53SEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.53H3A
Pos. 2200
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
Spindle Left Handed_G7, G8_VT104.53HEH
Pos. 2200
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.27SEH
Pos. 2201
Material: 316L
Specification / Size: 27mm, EH, Standard
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.27S3A
Pos. 2201
Material: 316L
Specification / Size: 27mm, 3A, Standard
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.27HEH
Pos. 2201
Material: 316L
Specification / Size: 27mm, EH, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.27H3A
Pos. 2201
Material: 316L
Specification / Size: 27mm, 3A, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.36SEH
Pos. 2201
Material: 316L
Specification / Size: 36mm, EH, Standard
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.36HEH
Pos. 2201
Material: 316L
Specification / Size: 36mm, EH, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.36H3A
Pos. 2201
Material: 316L
Specification / Size: 36mm, 3A, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.53SEH
Pos. 2201
Material: 316L
Specification / Size: 53mm, EH, Standard
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.53S3A
Pos. 2201
Material: 316L
Specification / Size: 53mm, 3A, Standard
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.53HEH
Pos. 2201
Material: 316L
Specification / Size: 53mm, EH, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.53H3A
Pos. 2201
Material: 316L
Specification / Size: 53mm, 3A, Hardened
Notes: --
Add
Spindle Right Handed_G7, G8_VT104.36S3A
Pos. 2201
Material: 316L
Specification / Size: 36mm, 3A, Hardened
Notes: --
Add
O-Ring Seal Housing_VT104_G7, G8, G9
Pos. 1088
Material: FKM
Specification / Size: DIN3771, 142x6.2mm
Notes: --
Add
O-Ring Seal Housing_VT104_G7, G8, G9
Pos. 1088
Material: EPDM
Specification / Size: DIN3771, 142x6.2mm
Notes: --
Add

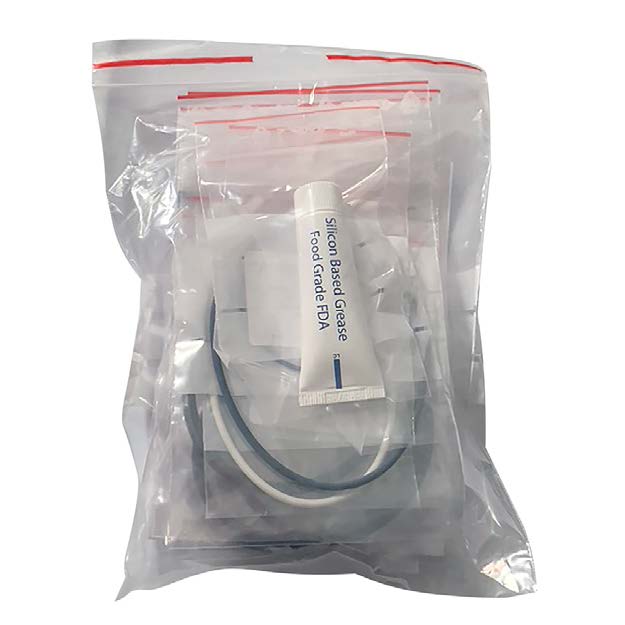

Elastomer Kit SAMS_VT104_G8_G9
Pos. 2535 EK
Material: FKM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add
Elastomer Kit SAMS_VT104_G8_G9
Pos. 2535 EK
Material: EPDM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add
Elastomer Kit SAMS_VT104_G8_G9
Pos. 2535 EK
Material: FKM
Specification / Size: HUHNSEAL, SD: 42mm
Notes: --
Add
Elastomer Kit SAMS_VT104_G8_G9
Pos. 2535 EK
Material: EPDM
Specification / Size: HUHNSEAL, SD: 42mm
Notes: --
Add
Elastomer Kit DAMS_VT104_G8_G9
Pos. 2535 EK
Material: FKM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add
Elastomer Kit DAMS_VT104_G8_G9
Pos. 2535 EK
Material: EPDM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add
Elastomer Kit DAMS_VT104_G8_G9
Pos. 2535 EK
Material: FKM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add
Elastomer Kit DAMS_VT104_G8_G9
Pos. 2535 EK
Material: EPDM
Specification / Size: ANGA, SD: 42mm
Notes: --
Add

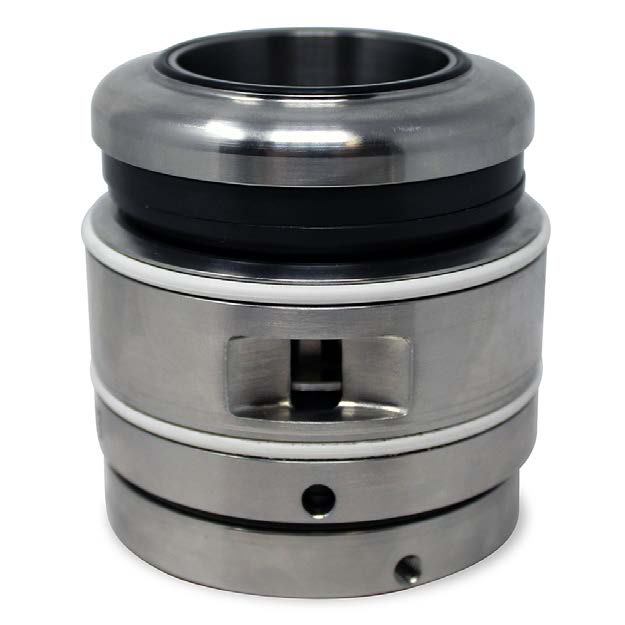

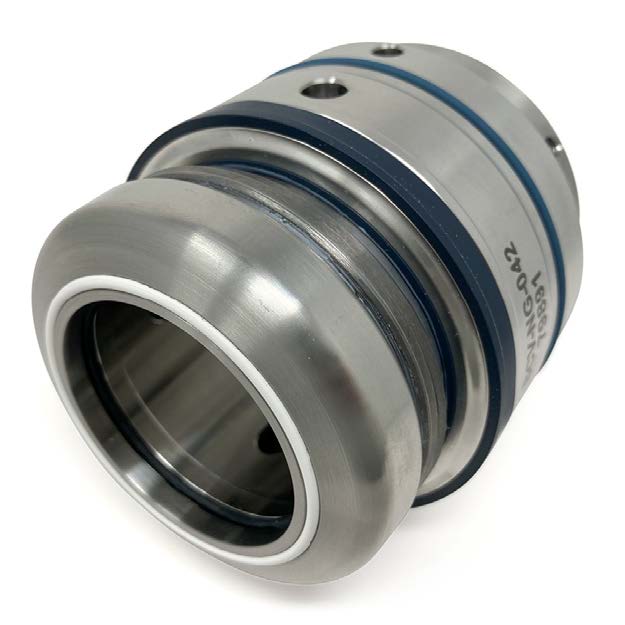

Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S3
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S3
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S4
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S4
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: S1
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: S1
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: S2
Notes: --
Add
Mechanical Seal SAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: S2
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D3
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D3
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D3
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D4
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: D4
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC_TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 45mm
Customer Reference: DX3
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC_TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 45mm
Customer Reference: DX3
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: D1
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: D1
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: D2
Notes: --
Add
Mechanical Seal DAMS_VT104_G8_G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 42mm
Customer Reference: D2
Notes: --
Add

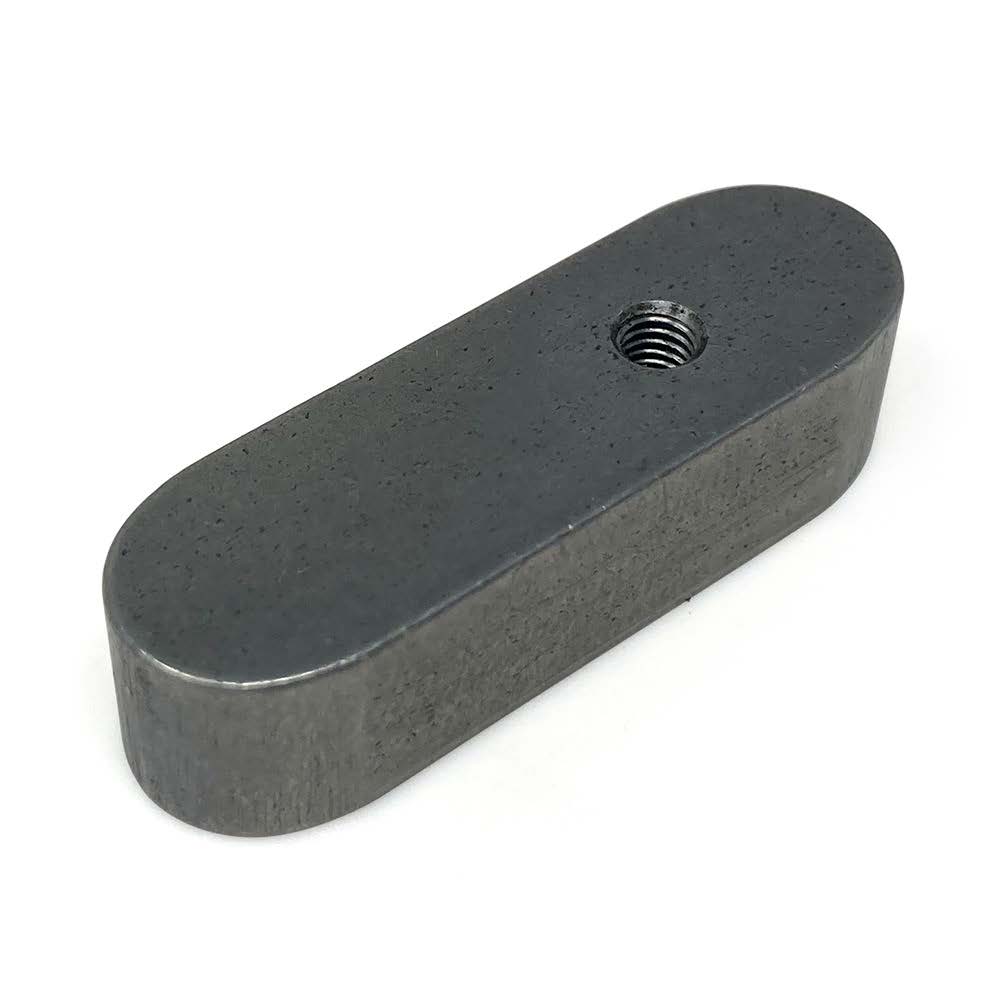

Key for Coupling_VT104_G7, G8, G9
Pos. 1183
Material: 304
Specification / Size: DIN6885-AS, 8x7x32
Notes: --
Add
Shaft Sealing Ring Bearing Housing_VT104_G8, G9
Pos. 2322
Material: FKM
Specification / Size: DIN6885-AS, 8x7x32
Notes: --
Add
Dowel Pin for Seal Housing Alignment_VT104, VT130_G8, G9
Pos. 2536
Material: 304
Specification / Size: DIN7, 8h8x24
Notes: --
Add

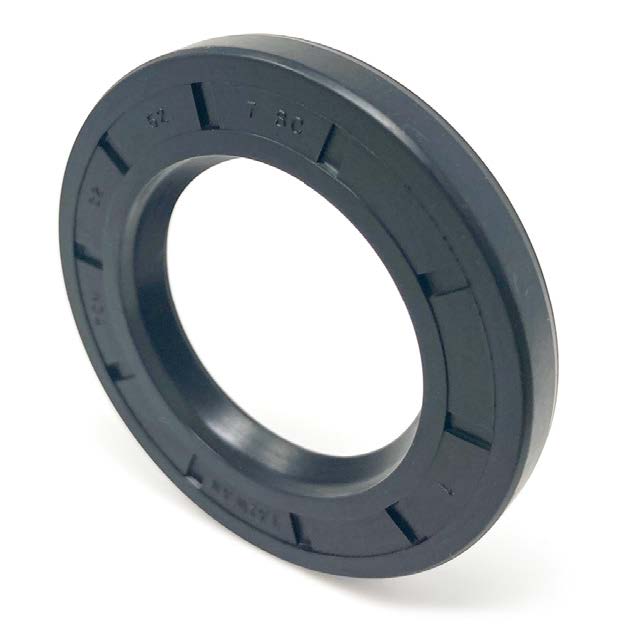

Shaft Sealing Ring Gear Housing_VT104_G8, G9
Pos. 1010
Material: FKM
Specification / Size: DIN3760-AS, 32x52x7, SD: 45mm
Notes: --
Add
Magnetic Screw Plug_VT70, VT104, VT130_G8, G9
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G3/4"
Notes: --
Add
Gasket for Sight Gauge_Magnet Plug
Pos. 2233, 2360
Material: FKM
Specification / Size: --
Notes: In sets of 5 pcs.
Add
Oil Level Sight Gauge_VT70, VT104, VT130_G7, G8, G9
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --
Add
Gasket for Sight Gauge_Magnet Plug
Pos. 2233, 2360
Material: FKM
Specification / Size: --
Notes: In sets of 5 pcs.
Add
O-Ring Large for Gear Housing_VT104_G8, G9
Pos. 2513
Material: FKM
Specification / Size: DIN3771, 237x4.0mm
Notes: --
Add
O-Ring Small for Gear Housing_VT104_G8, G9
Pos. 2514
Material: FKM
Specification / Size: DIN3771, 18.5x2.0mm
Notes: --
Add
Gear Oil Bearing Housing VT
Pos. --
Material: --
Specification / Size: 1 L
Notes: --
Add

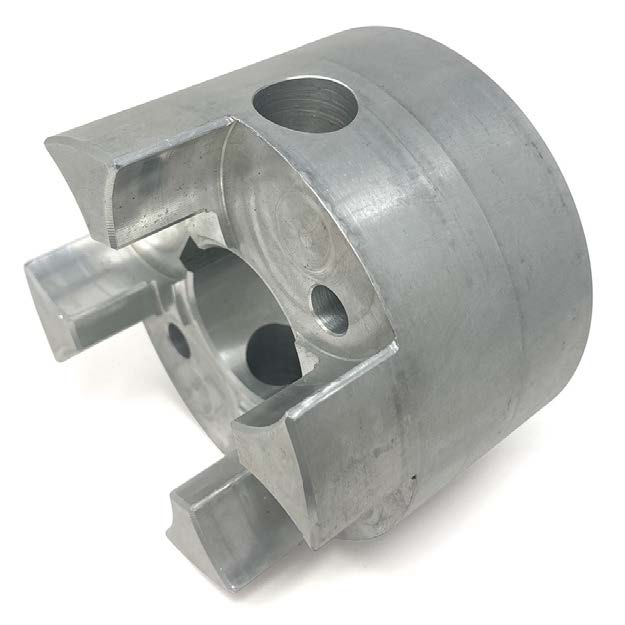

Coupling Hub Pump_VT104_G8, G9
Pos. 2247
Material: Aluminium
Specification / Size: BS: 28mm
Notes: --
Add
various
Pos. 2248
Material: Aluminium
Specification / Size: variable
Notes: Size might change due to motor size
Add
Coupling Spider_VT104, VT130_G8, G9
Pos. 2249
Material: PU
Specification / Size: 98 42/55-Red
Notes: --
Add

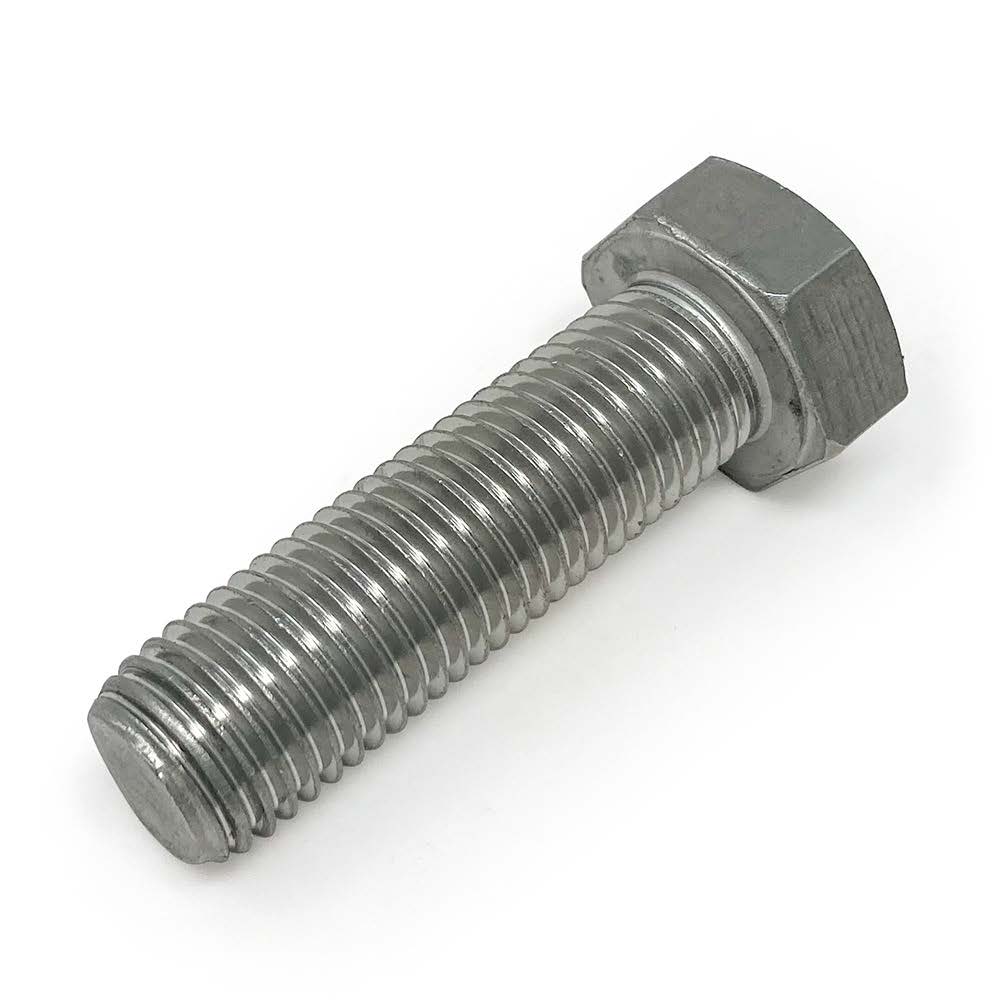

Hex Head Cap Screw for Pump Face_VT70, VT104_G8, G9
Pos. 2527
Material: SS
Specification / Size: ISO4017-M16x40
Notes: --
Add
Pump Face_NPSH-Optimized_VT104_G8, G9
Pos. 2528
Material: SS
Specification / Size: OD 3“, ASME/DIN11866_C
Notes: --
Add
Pump Face_NPSH-Optimized_VT104_G8, G9
Pos. 2528
Material: SS
Specification / Size: OD 4“, ASME/DIN11866_C
Notes: --
Add
Sensor Plug_VT104_VT130_G8, G9
Pos. 3050
Material: 316L
Specification / Size: 1x24x2
Notes: --
Add
O-Ring for Sensor Plug_VT104_VT130_G8, G9
Pos. 3050A
Material: FKM
Specification / Size: 24x2, in contact with the medium
Notes: --
Add

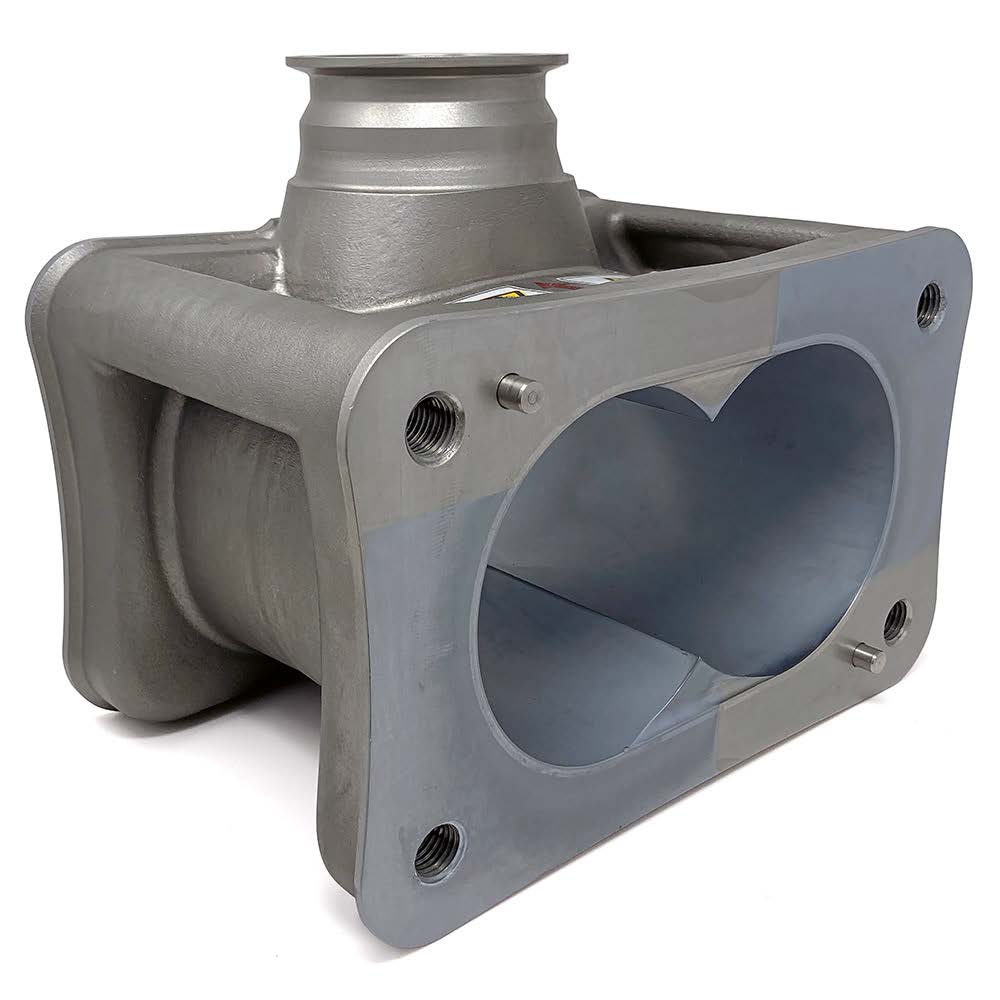

Pump Housing_VT104_G8, G9
Pos. 2530
Material: 316L
Specification / Size: OD 2", ASME/DIN11866_C
Notes: --
Add
Pump Housing_VT104_G8, G9
Pos. 2530
Material: 316L
Specification / Size: OD 2-1/2", ASME/DIN11866_C
Notes: --
Add
Pump Housing_VT104_G8, G9
Pos. 2530
Material: 316L
Specification / Size: OD 3", ASME/DIN11866_C
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: OD1/4“/P2:1/4“ BSP
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:OD1/4“
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:OD1/4“
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/4“ NPT
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/8“ BSP
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/4“ BSP
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:3/8“ NPT/P2:OD1/4“
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/4“ BSP
Notes: --
Add
SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:3/8“ BSP
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: OD3/8“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: P1:OD3/8“/P2:1/8“ BSP
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: OD3/8“/1/4“ BSP
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: OD3/8“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: 3/8“ NPT/OD3/8“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: 3/8“ NPT/OD3/8“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: 3/8“ NPT/OD3/8“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: P1:OD3/8“/P2:OD3/8“/P3:OD1/4“
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: P1:OD3/8“/P2:1/4“ BSP
Notes: --
Add
SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: OD3/8“/3/8“ BSP
Notes: --
Add
Seal Housing_VT104_G8, G9
Pos. 2188
Material: 316L
Specification / Size: 3A
Notes: --
Add

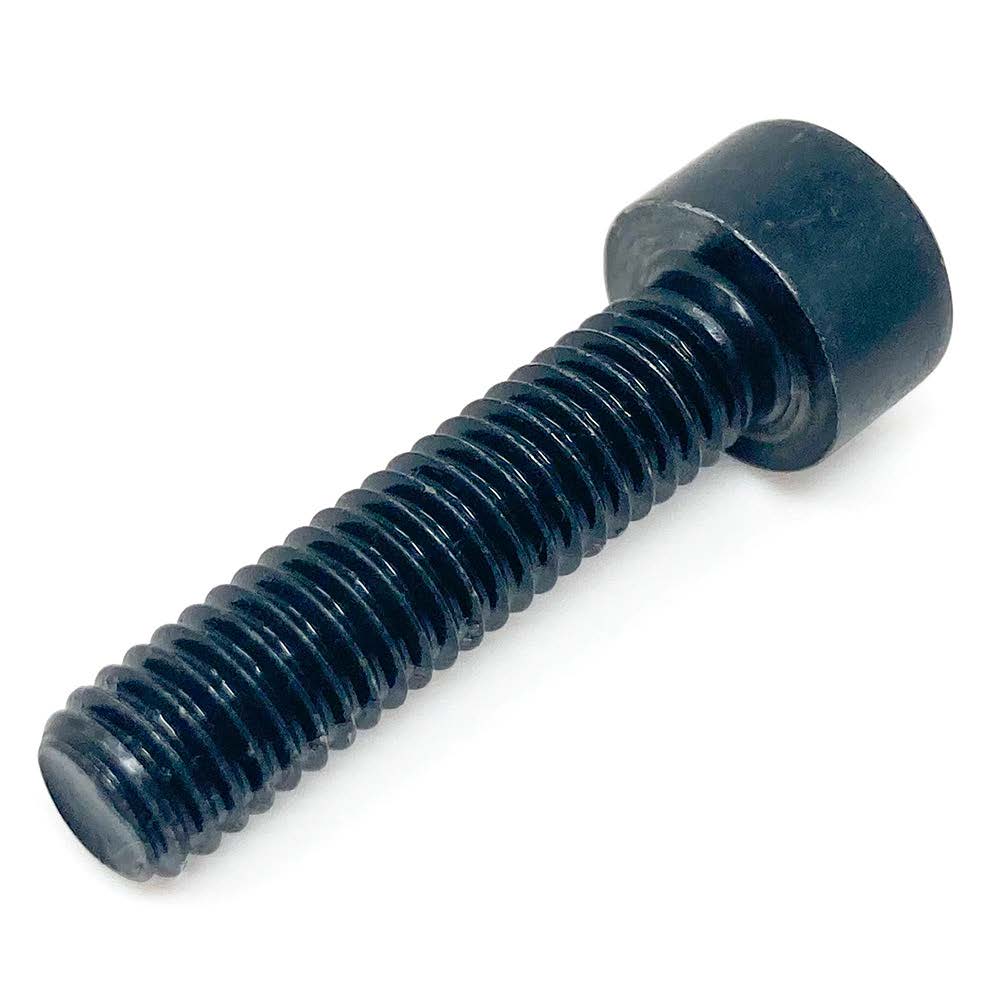

Hex Socket Screw for Seal Housing_VT70, VT104, VT130_G8, G9
Pos. 2259
Material: SS
Specification / Size: DIN912-M6x20
Notes: --
Add
Fixing Hex Bolt for Mechanical Seal_VT104_G8, G9
Pos. 2533
Material: 304
Specification / Size: fixing screw
Notes: --
Add
Fixing Hex Bolt for Mechanical Seal_VT104_G8, G9
Pos. 2538
Material: 304
Specification / Size: ISO2338- 3h8x12
Notes: --
Add
Washer for Seal Housing Bolt_VT70, VT104, VT130_G7, G8, G9
Pos. 2539
Material: SS
Specification / Size: DIN9021-A 4.3
Notes: --
Add
Dowel Pin Retaining Screw_VT70, VT104, VT130_G8, G9
Pos. 2540
Material: 304
Specification / Size: ISO4017-M4x8
Notes: --
Add
Safety Guard Right_VT104, VT130_G8, G9
Pos. 2546
Material: SS
Specification / Size: GRD, right
Notes: --
Add
Safety Guard Left_VT104, VT130_G8, G9
Pos. 2547
Material: SS
Specification / Size: GRD, left
Notes: --
Add
Hex Bolt for Protection Shield_VT70, VT104, VT130_G8, G9
Pos. 2532
Material: SS
Specification / Size: ISO4017-M4x10
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:6mm
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:8mm
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:10mm
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/2"/PC:OD1/2"
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:3/8“/VS:1/4“
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/4“ IPS
Notes: --
Add
SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/4“
Notes: --
Add
Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3011
Material: 316
Specification / Size: T:OD1/4“
Notes: --
Add
Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3012
Material: 316
Specification / Size: T:OD3/8“
Notes: --
Add
Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3013
Material: 316
Specification / Size: T:OD3/8“
Notes: --
Add
SM4100
Pos. 3013
Material: 316
Specification / Size: AC:1/4“ BSP
Notes: --
Add
EVC004 Right Angle Connector Cable
Pos. 3014A
Material: FKM
Specification / Size: --
Notes: --
Add
6213
Pos. 3015
Material: 316L, EPDM
Specification / Size: H1:1/4“ NPT/VS:10mm
Notes: Buerkert Solenoid Valve
Add
Drive Shaft_VT104_G8, G9
Pos. 1000
Material: 316L
Specification / Size: --
Notes: --
Add
Driven Shaft_VT104_G8, G9
Pos. 2171
Material: 316L
Specification / Size: --
Notes: --
Add
Dowel Pin for Shaft_VT70, VT104_G8, G9
Pos. 2541
Material: 304
Specification / Size: --
Notes: --
Add
Bearing Housing_VT104_G8, G9
Pos. 1001
Material: Cl
Specification / Size: RAL5005, painted blue, 3-leg
Notes: --
Add
Bearing Housing_VT104_G8, G9
Pos. 1001
Material: SS
Specification / Size: Stainless Steel Cast
Notes: --
Add
Bearing Housing_VT104_G8, G9
Pos. 1003
Material: --
Specification / Size: DIN617, NA 6912
Notes: --
Add

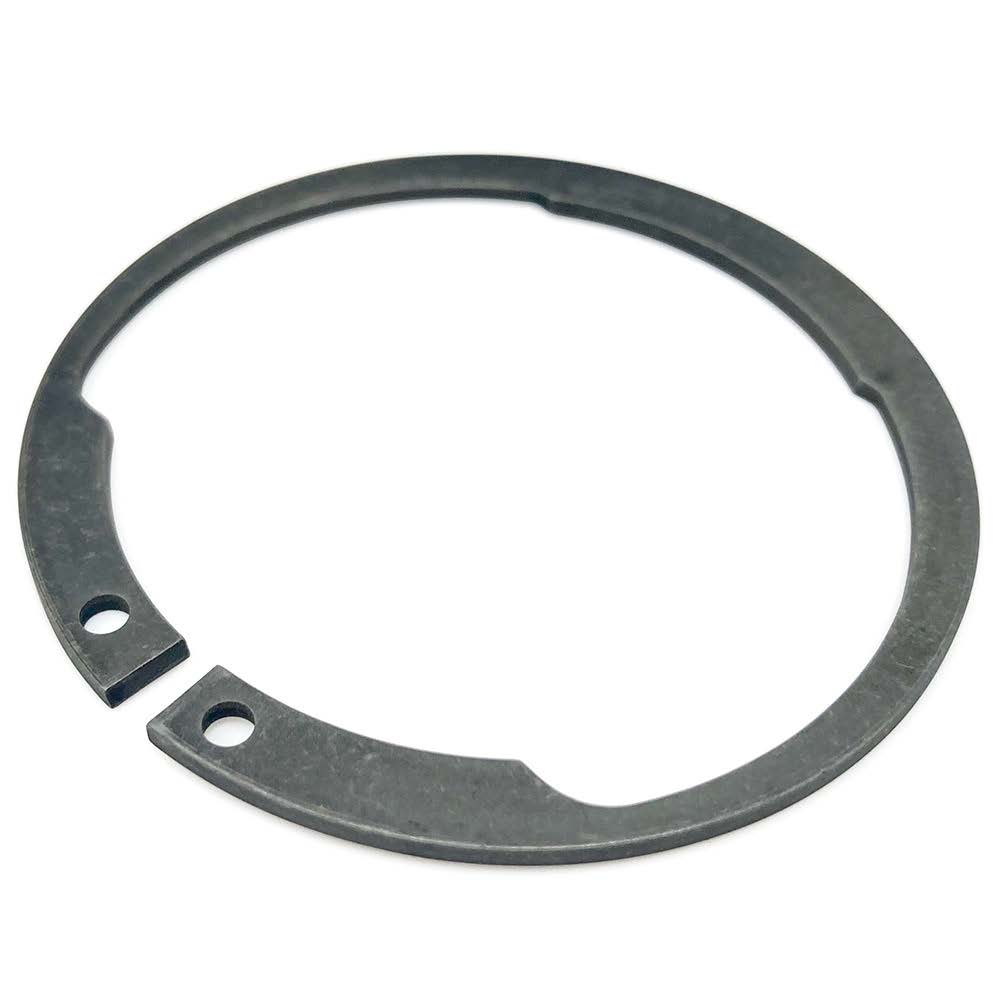

Locking Snap Ring_VT104_G7, G8, G9
Pos. 1009
Material: Steel
Specification / Size: AV 50x2
Notes: --
Add
Hex Bolt for Bearing Housing_VT70, VT104_G8, G9
Pos. 1016 / 2258
Material: SS
Specification / Size: ISO4017-M16x55
Notes: --
Add

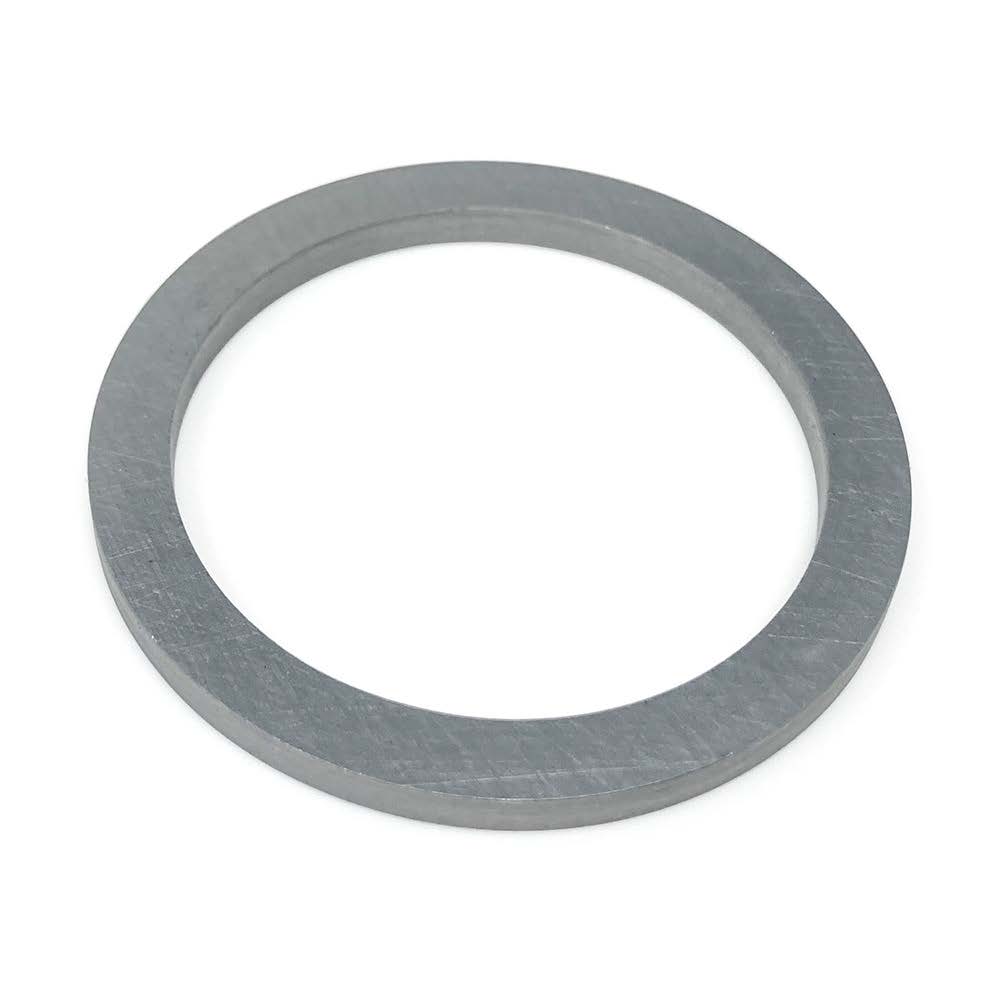

Outer Spacer Ring for Ball Bearing_VT104_G7, G8, G9
Pos. 1121
Material: SS
Specification / Size: outside
Notes: --
Add
Inner Spacer Ring for Ball Bearing_VT104_G7, G8, G9
Pos. 1530
Material: SS
Specification / Size: inside
Notes: --
Add

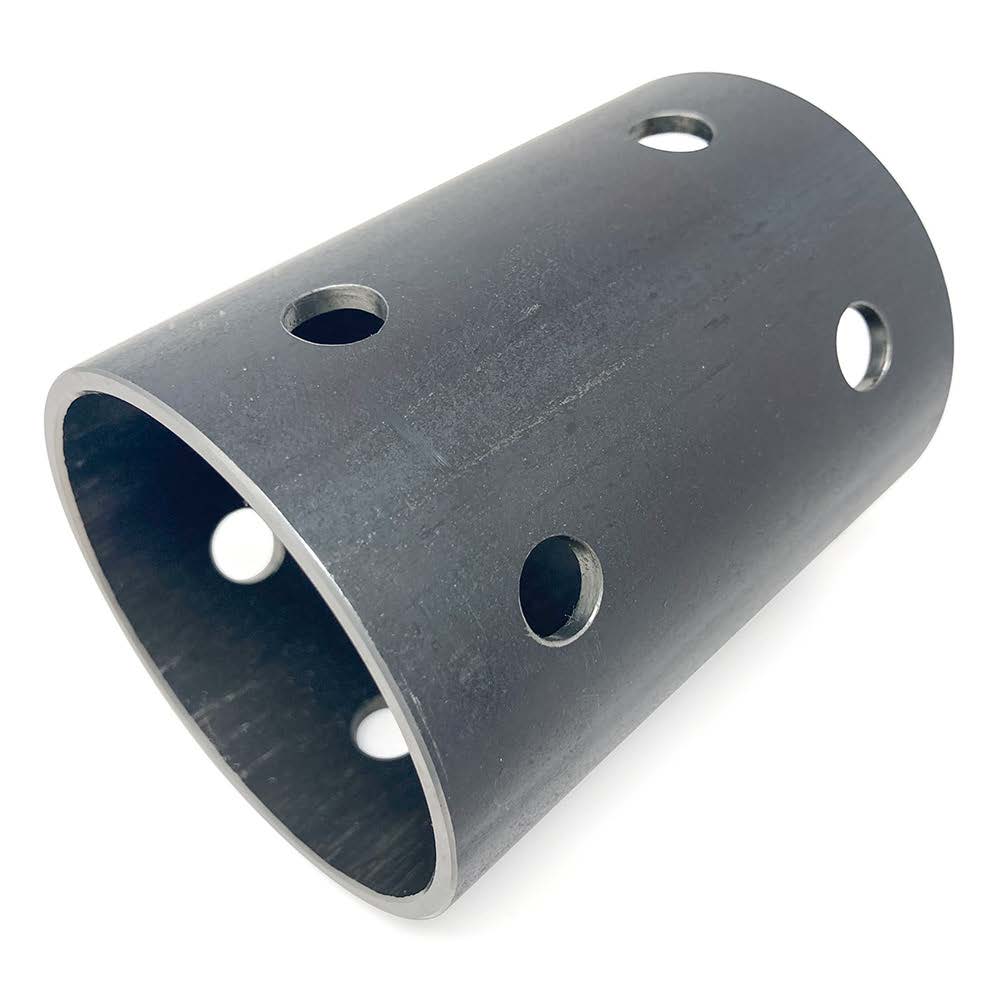

Spacer Sleeve for Bearings_VT104_G8, G9
Pos. 1529
Material: SS
Specification / Size: --
Notes: --
Add
Spacer Sleeve for Bearings_VT104_G8, G9
Pos. 1529
Material: SS
Specification / Size: --
Notes: --
Add

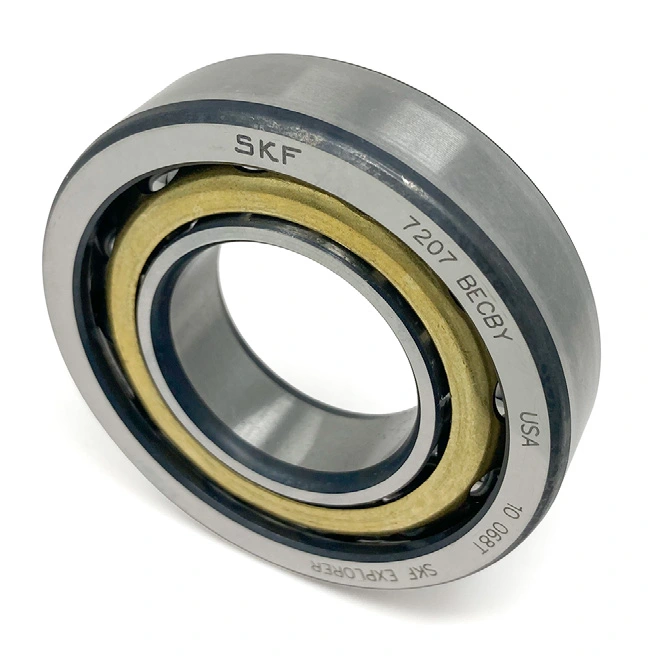

Angular Ball Bearing_VT104_G7, G8, G9
Pos. 2181
Material: S129
Specification / Size: --
Notes: --
Add
Key for Shaft_VT104_G8, G9
Pos. 2179
Material: SS
Specification / Size: DIN 6885-AS, 10x8x32
Notes: --
Add
Venting Valve_VT70, VT04, VT130_G7, G8, G9
Pos. 2232
Material: 304
Specification / Size: G1/4“
Notes: --
Add
Dowel Pin for Shaft_VT70, VT104_G8, G9
Pos. 2541
Material: 304
Specification / Size: --
Notes: --
Add
Hex Socket Screw Bearing Cover_VT70, 104, 130_G7, G8, G9
Pos. 1008
Material: Steel-12.9
Specification / Size: DIN912-M 8x20
Notes: --
Add

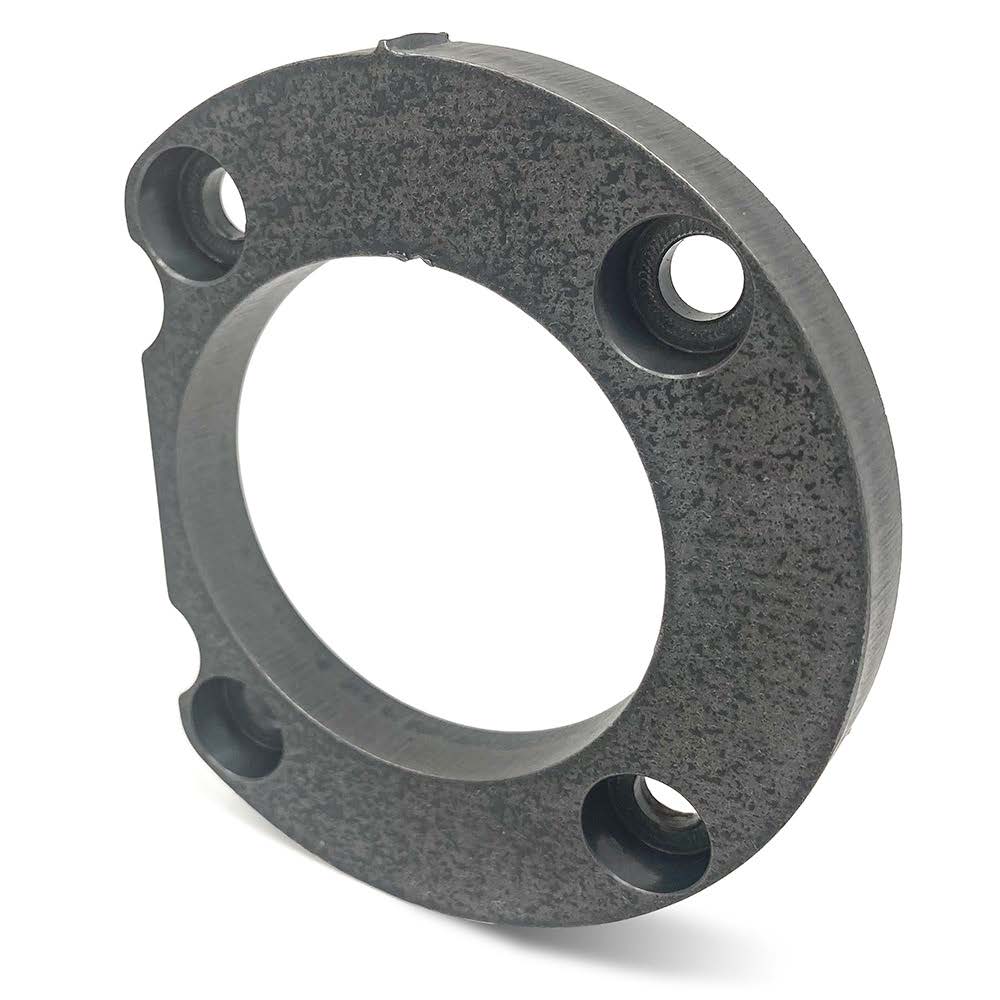

Bearing Cover_VT104_G7, G8, G9
Pos. 1227
Material: Steel
Specification / Size: --
Notes: --
Add

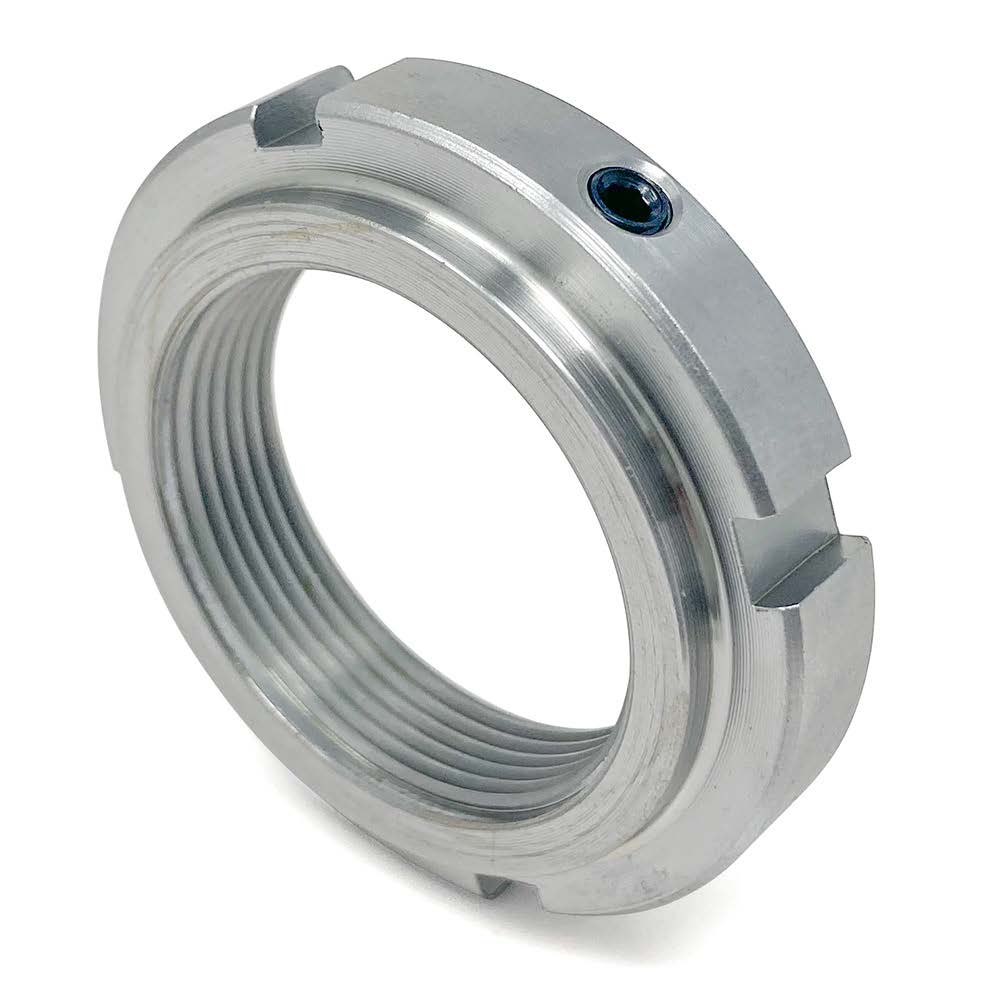

Drive Shaft Gear Wheel Nut_VT104_G7, G8, G9
Pos. 1526
Material: SS
Specification / Size: SKF, KMFE 7, M35x 1,5
Notes: --
Add

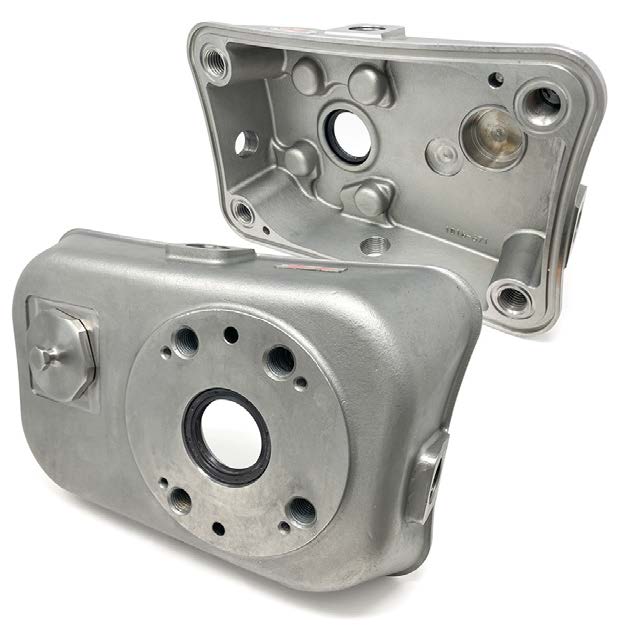

Gear Housing VT104 G8, G9
Pos. 2172
Material: CI
Specification / Size: RAL5005, Housing NO Gapping Port
Add
Gear Housing_VT104_G8, G9
Pos. 2172
Material: Cl
Specification / Size: RAL5005, Housing NO Gapping Port
Notes: --
Add

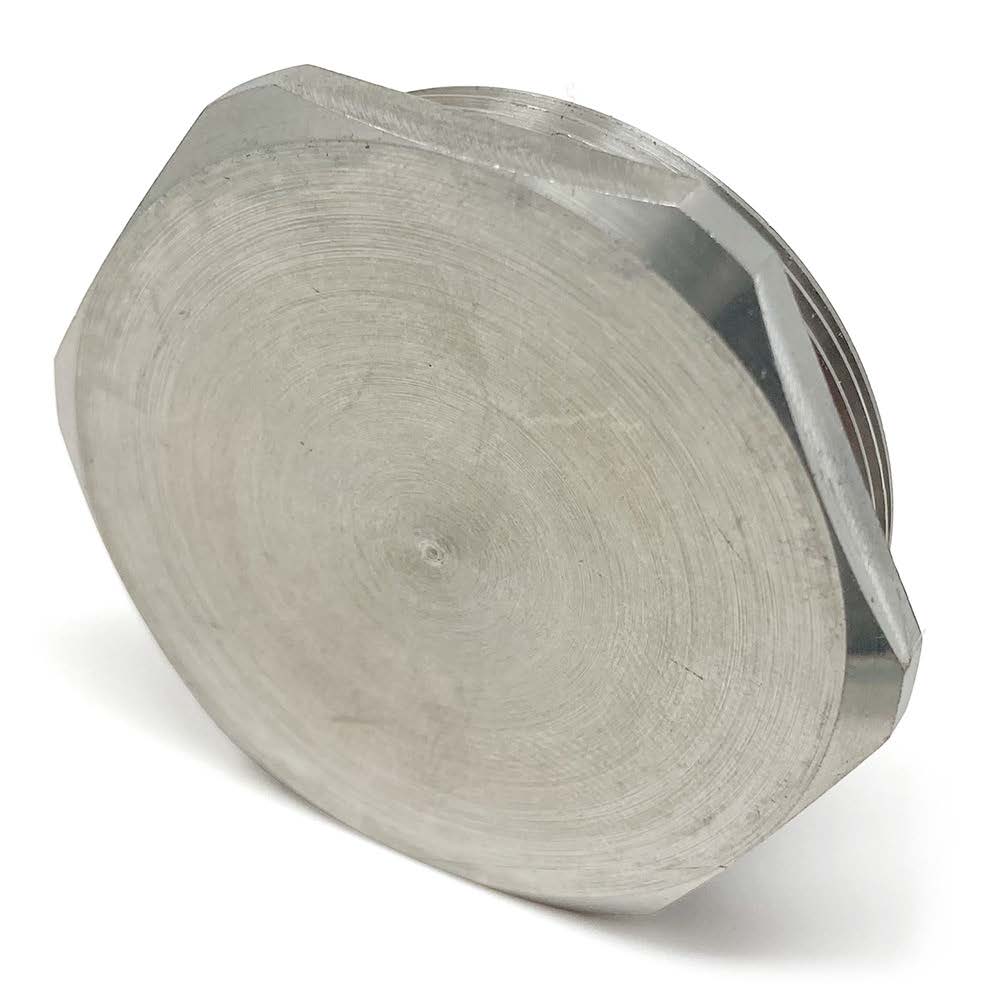

Blind Plug_VT104_G8, G9_SS
Pos. 3100
Material: 304
Specification / Size: 40mm
Notes: --
Add

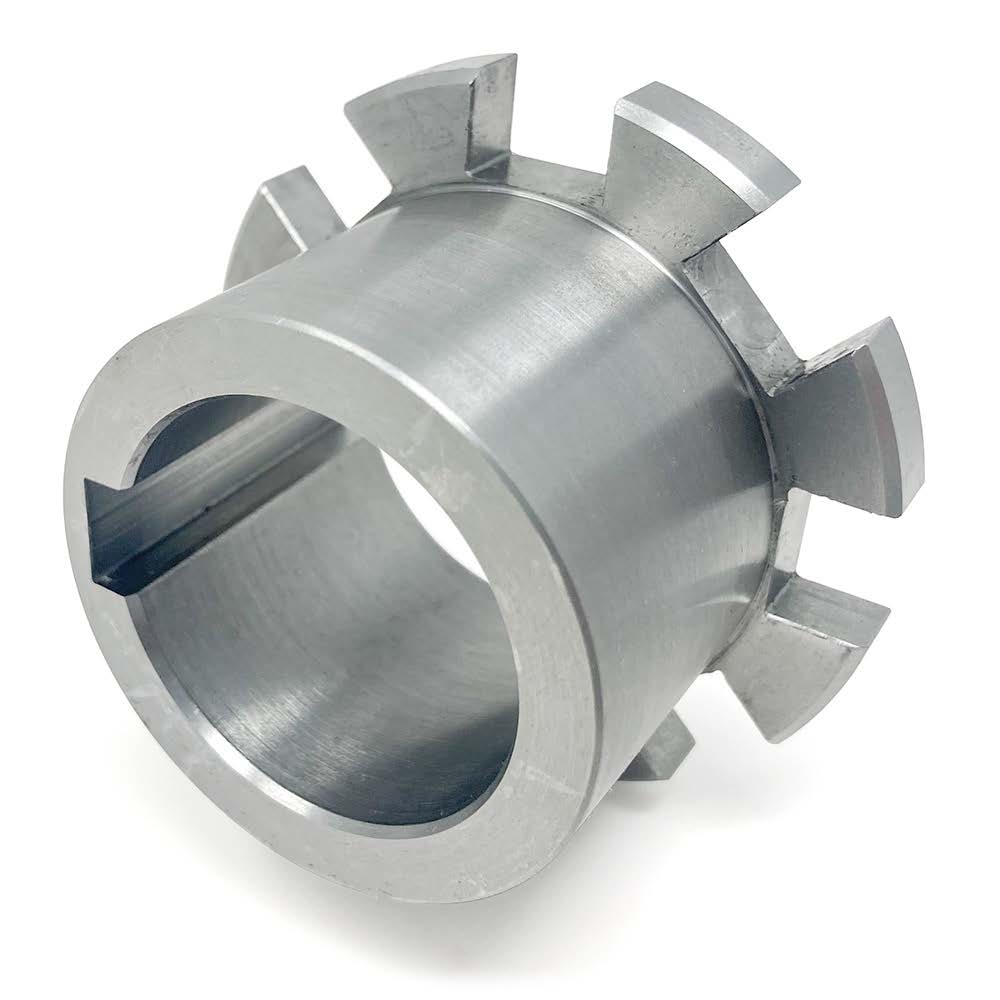

Gear Wheel Collar Driven Shaft_VT104_G8, G9
Pos. 2176
Material: SS
Specification / Size: --
Notes: --
Add
Hex Bolt for Driven Shaft_VT104, VT130_G8, G9
Pos. 2177
Material: Steel 12.9
Specification / Size: ISO4017-M16x50
Notes: --
Add

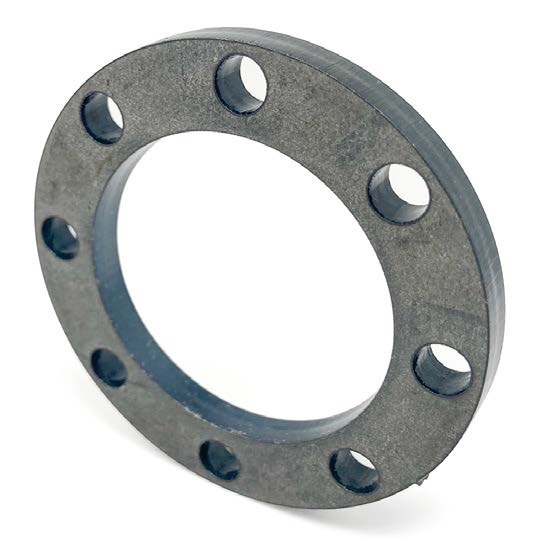

Press Ring Gear Wheel Driven Shaft_VT104_G8, G9
Pos. 2178
Material: SS
Specification / Size: --
Notes: --
Add

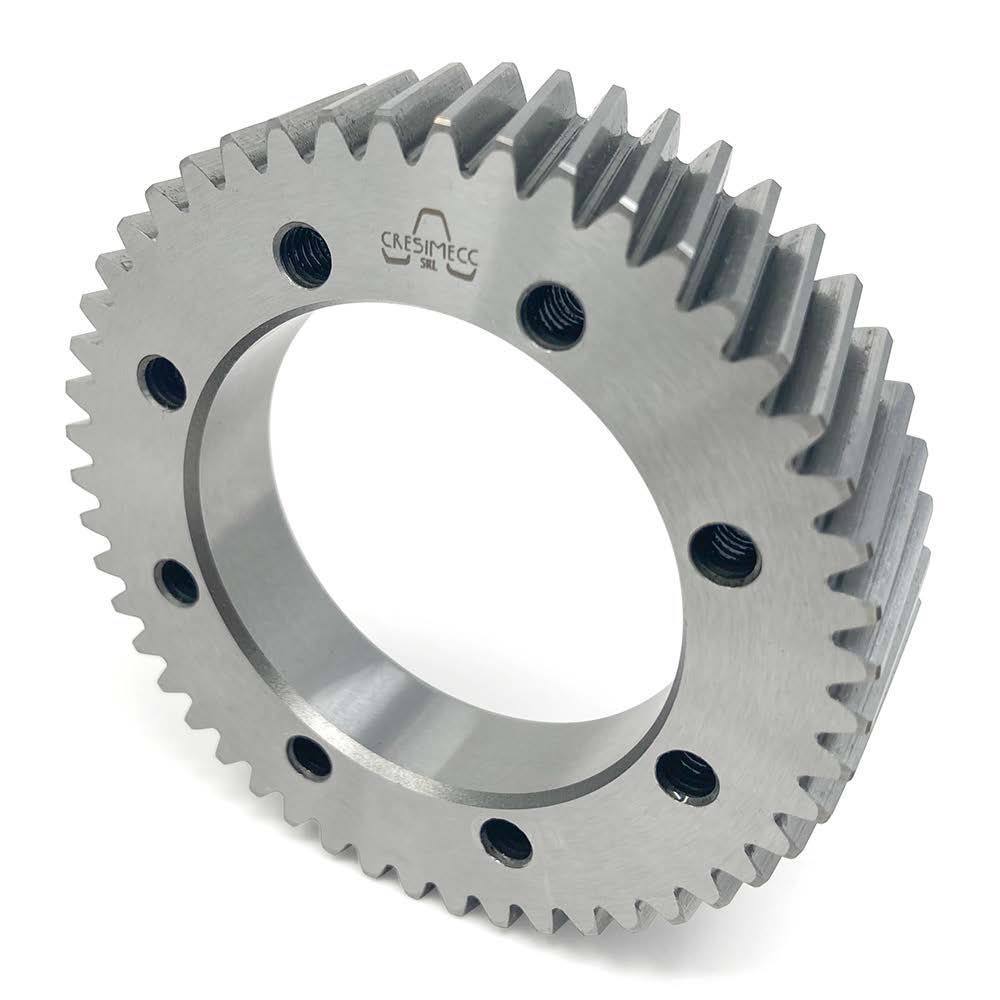

Gear Wheel Drive Shaft_VT104_G8, G9
Pos. 2183
Material: 5115 hardened
Specification / Size: 49teeth, w=36.5mm, module 1.5
Notes: --
Add
Gear Wheel Driven Shaft_VT104_G8, G9
Pos. 2184
Material: 5115 hardened
Specification / Size: 49teeth, b=20mm, module 1.5
Notes: --
Add
Hex Socket Screw for Gear Cover_VT104_G8, G9
Pos. 2184
Material: 5115 hardened
Specification / Size: 49teeth, b=20mm, module 1.5
Notes: --
Add
Washer for Bearing Cover Screw_VT104_G7, G8, G9
Pos. 2326
Material: SS
Specification / Size: --
Notes: --
Add
Gear Synchronization Lock Ring_VT104_G8, G9
Pos. 2515
Material: CS
Specification / Size: --
Notes: --
Add
G8, G9-IEC180 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-IEC180 Frame
Notes: --
Add
G8, G9-IEC200 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-IEC200 Frame
Notes: --
Add
G8, G9-NEMA180-250 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA180-250 Frame DWG 7.38-NGLA-N250
Notes: --
Add
G8, G9-NEMA280 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA280 Frame DWG 20200426-01
Notes: --
Add
G8, G9-NEMA320 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA320 Frame DWG 20200424-01 Vesion B
Notes: --
Add
G8, G9-NEMA360 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA360 Frame DWG 20200920-01 Vesion E
Notes: --
Add
Pump Flange Pin_VT70, VT104, VT130_G7, G8, G9
Pos. 2516
Material: SS
Specification / Size: 8mm, OD 8x20
Notes: --
Add
Hex Head Screw_M18x2.5x80mm
Pos. 2522
Material: SS
Specification / Size: M18x2.5x80mm
Notes: --
Add
Hex Head Screw_0.5-13x2.25in
Pos. 2522
Material: SS
Specification / Size: 1/2“-13 Thread, 2.25“ Long
Notes: --
Add
Hex Head Screw_0.625-11x2in
Pos. 2522
Material: SS
Specification / Size: 5/8“-11 Thread, 2“ Long, Fully Threaded, Motor Flange Plate Hex Head Screw
Notes: --
Add
Washer_M18
Pos. 2523
Material: Al
Specification / Size: 18mm
Notes: --
Add
Washer_0.5in_SS
Pos. 2523
Material: 304
Specification / Size: 1/2“
Notes: --
Add
Washer_0.625in
Pos. 2523
Material: 316
Specification / Size: 5/8", Motor Flange Plate Washer
Notes: --
Add
Socket Head Cap Screw
Pos. 2525
Material: STG
Specification / Size: 16mm
Notes: --
Add
Lantern Protection Shield VT_G8, G9
Pos. 3001
Material: 304
Specification / Size: --
Notes: --
Add
Cap Nut for Protection Shield Lantern
Pos. 3002
Material: 316
Specification / Size: 3mm
Notes: --
Add
W22 Severe Duty (VT70, VT104, VT130)
Pos. various
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements
Add
ViscoTec, Inc. Mail: 932 W Mission Ave, Visalia, CA 93277
PROCESSTEC
PROCESSTEC, Inc. • 345 East Tulare Ave, Unit E • Visalia, CA 93277 • Phone: (559) 429-4227 • Fax: (559) 429-4228 • E-mail: info@processtec.com
Back to content
