SP VT130 G7 ML2 ViscoTwin Pumps - PROCESSTEC

Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --

Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: Hex Style
Notes: --

O-Ring for Pump Face_VT130_G7, G8, G9
Pos. 2192
Material: FKM
Specification / Size: 186.5x4mm
Notes: --

O-Ring for Pump Face_VT130_G7, G8, G9
Pos. 2192
Material: EPDM
Specification / Size: 186.5x4mm
Notes: --

O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: DIN3771, 42x3.0
Notes: --

O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: DIN3771, 42x3.0
Notes: --

Dowel Pin for Pump Face & Housing_VT70, VT104, VT130_G7, G8, G9
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --

Spindle Left Handed_G7, G8_VT130.33SEH
Pos. 2200
Material: 316L
Specification / Size: 33mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.33S3A
Pos. 2200
Material: 316L
Specification / Size: 33mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.33HEH
Pos. 2200
Material: 316L
Specification / Size: 33mm, EH, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.33H3A
Pos. 2200
Material: 316L
Specification / Size: 33mm, 3A, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.44SEH
Pos. 2200
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44S3A
Pos. 2200
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44HEH
Pos. 2200
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44H3A
Pos. 2200
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65SEH
Pos. 2200
Material: 316L
Specification / Size: 65mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65S3A
Pos. 2200
Material: 316L
Specification / Size: 65mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65HEH
Pos. 2200
Material: 316L
Specification / Size: 65mm, EH, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.65H3A
Pos. 2200
Material: 316L
Specification / Size: 65mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.33SEH
Pos. 2201
Material: 316L
Specification / Size: 33mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.33S3A
Pos. 2201
Material: 316L
Specification / Size: 33mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.33HEH
Pos. 2201
Material: 316L
Specification / Size: 33mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.33H3A
Pos. 2201
Material: 316L
Specification / Size: 33mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.44SEH
Pos. 2201
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.44S3A
Pos. 2201
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.44HEH
Pos. 2201
Material: 316L
Specification / Size: 44mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.44H3A
Pos. 2201
Material: 316L
Specification / Size: 44mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.65SEH
Pos. 2201
Material: 316L
Specification / Size: 65mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.65S3A
Pos. 2201
Material: 316L
Specification / Size: 65mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.65HEH
Pos. 2201
Material: 316L
Specification / Size: 65mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.65H3A
Pos. 2201
Material: 316L
Specification / Size: 65mm, 3A, Hardened
Notes: --

O-Ring Seal Housing_VT130_G7, G8, G9
Pos. 1088
Material: FKM
Specification / Size: DIN3771, 180x6.0
Notes: --

O-Ring Seal Housing_VT130_G7, G8, G9
Pos. 1088
Material: EPDM
Specification / Size: DIN3771, 180x6.0
Notes: --

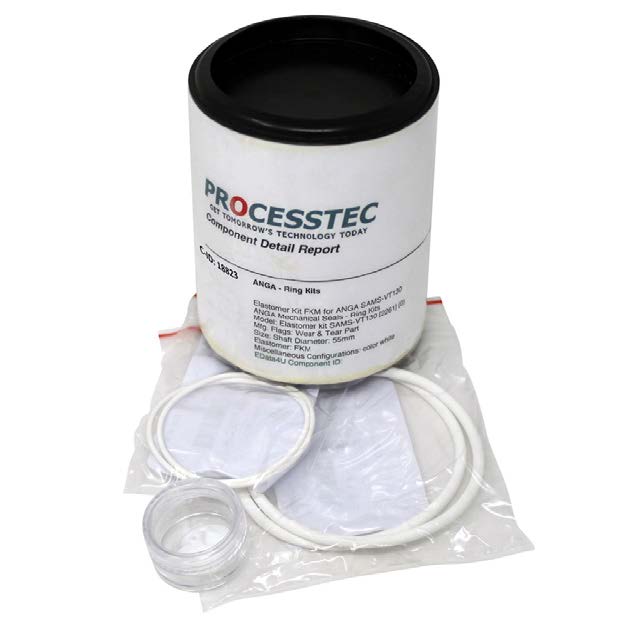

Elastomer Kit SAMS_VT130_G7
Pos. 2261 BF
Material: FKM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit SAMS_VT130_G7
Pos. 2261 BF
Material: EPDM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit SAMS_VT130_G7
Pos. 2261 BF
Material: FKM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Elastomer Kit SAMS_VT130_G7
Pos. 2261 BF
Material: EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G7
Pos. 2261 BC
Material: FKM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G7
Pos. 2261 BC
Material: EPDM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G7
Pos. 2261 BC
Material: FKM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G7
Pos. 2261 BC
Material: EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D3
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D3
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D4
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D4
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/Tu, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: DX4
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D1
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D1
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D2
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D2
Notes: --

Mechanical Seal DAMS_VT130_G7
Pos. 1303 BC
Material: TuC/Tu, FKM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: DX2
Notes: --

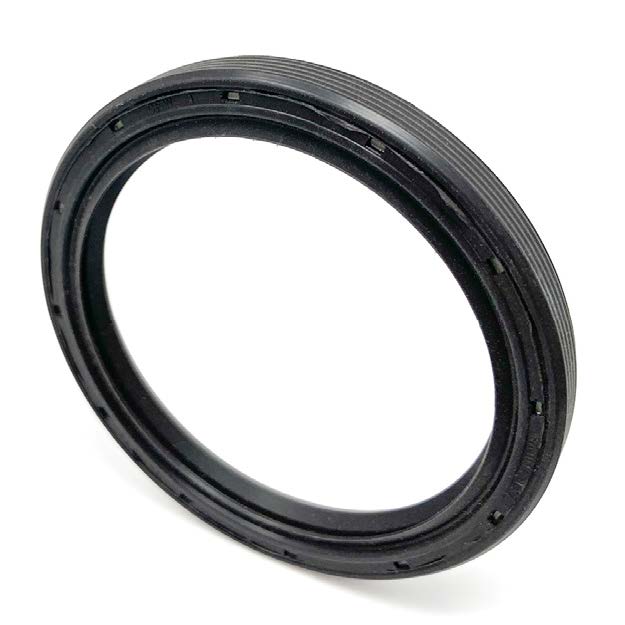

Shaft Sealing Ring Bearing Housing_VT130_G7
Pos. 1111
Material: FKM
Specification / Size: DIN3760-AS, 60x75x8, SD: 55mm
Notes: --

Key for Coupling_VT130_G7, G8, G9
Pos. 1183
Material: 304
Specification / Size: DIN6885-AS, 10x8x45
Notes: --

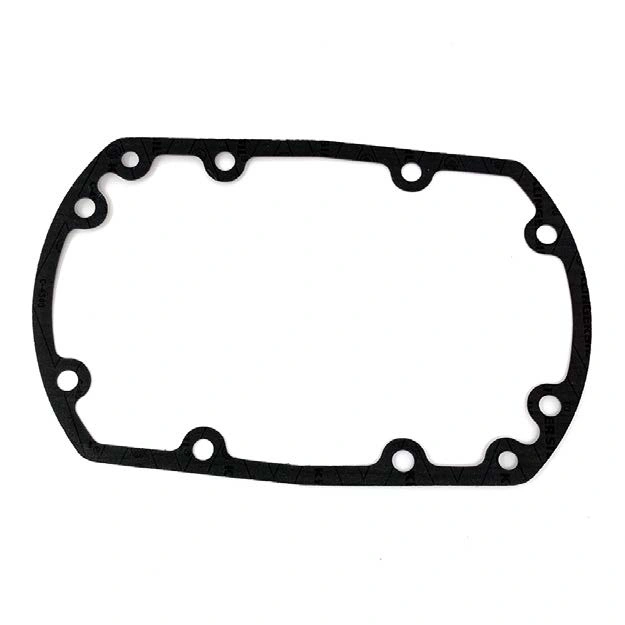

Flat Gasket Gear Housing_VT130_G7
Pos. 2198
Material: --
Specification / Size: 1mm
Notes: --

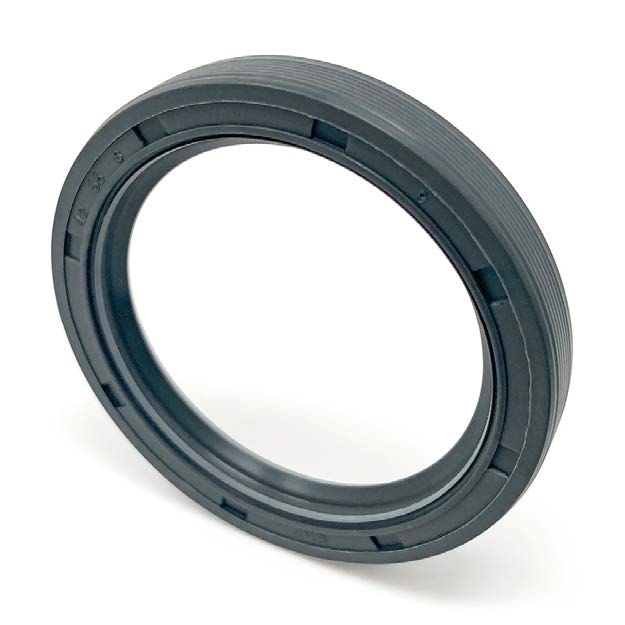

Shaft Sealing Ring Gear Housing_VT130_G7
Pos. 1010
Material: FKM
Specification / Size: DIN3760-AS, 42x55x8, SD: 55mm
Notes: --

Oil Level Sight Gauge_VT70, VT104, VT130_G7, G8, G9
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --

Magnetic Screw Plug_VT70, VT104, VT130_G7
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G1/2"
Notes: --

Gear Oil Bearing Housing VT
Pos. --
Material: --
Specification / Size: 1 L
Notes: --

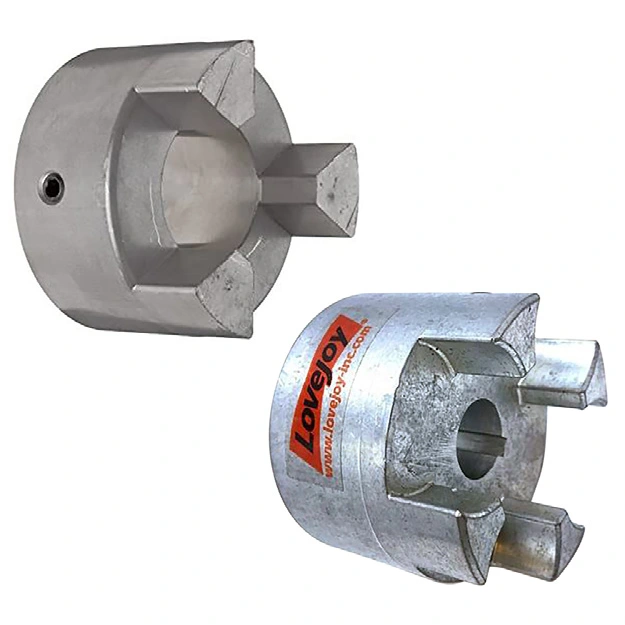

Coupling Hub Pump_AL100_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL100, BS: 35mm
Notes: --

Coupling Hub Motor_AL110_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL110, BS: 35mm
Notes: --

Coupling Hub Motor_AL150_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL150, BS: 35mm
Notes: --

Motor Coupler 42/55 NEMA 21X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-3/8“
Notes: --

Motor Coupler 42/55 NEMA 25X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-5/8“
Notes: --

Motor Coupler 42/55 NEMA 28X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-7/8“
Notes: --

Motor Coupler 42/55 NEMA 32X
Pos. 2248
Material: Aluminium
Specification / Size: BS:2-1/8“
Notes: --

Motor Coupler 42/55 NEMA 36X
Pos. 2248
Material: Aluminium
Specification / Size: BS:2-3/8“
Notes: --

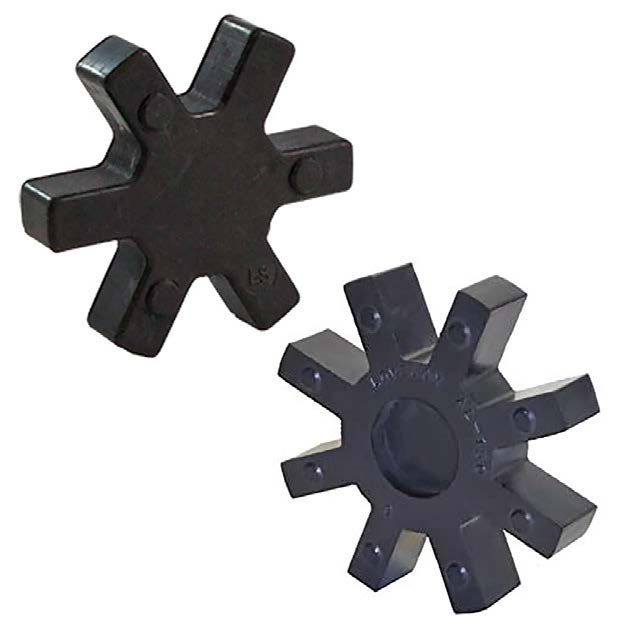

Coupling Spider_L150_8star_G7
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model 150, Solid Type
Notes: --

Coupling Hub Motor 130 G7
Pos. 2249
Specific Model Name: Coupling Spider L100 G7
Specification: Elastomer NBR Lovejoy, Model L100 Solid Type

Coupling Hub Motor 130 G7
Pos. 2249
Specific Model Name: Coupling Spider L110_G7
Specification: Elastomer NBR Lovejoy, Model L110 Solid Type

W22 Severe Duty (VT70, VT104, VT130)
Pos. 3003
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements
