SP VT130 G8 (NG) ML2 ML3 ViscoTwin Pumps - PROCESSTEC

Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --

Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: Hex Style
Notes: --

O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: DIN3771, 42x3.0
Notes: --

O-Ring for Spindle Screw_VT104, VT130_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: DIN3771, 42x3.0
Notes: --

Hex Head Cap Screw for Pump Face_VT130_G8, G9
Pos. 2527
Material: SS
Specification / Size: ISO4017, M20x40
Notes: --

Pump Face_NPSH-Optimized_VT130_G8, G9
Pos. 2528
Material: SS
Specification / Size: OD 4", ASME/DIN11866_C
Notes: --

Pump Face_NPSH-Optimized_VT130_G8, G9
Pos. 2528
Material: SS
Specification / Size: OD 6", ASME/DIN11866_C
Notes: --

O-Ring for Sensor Plug_VT104_VT130_G8, G9
Pos. 3050A
Material: FKM
Specification / Size: 24x2, in contact with the medium
Notes: --

Sensor Plug_VT104_VT130_G8, G9
Pos. 3050
Material: 316L
Specification / Size: 1x24x2
Notes: --

Pump Housing_VT130_G8, G9
Pos. 2530
Material: SS
Specification / Size: OD 3", ASME/DIN11866_C
Notes: --

Pump Housing_VT130_G8, G9
Pos. 2530
Material: SS
Specification / Size: OD 4", ASME/DIN11866_C
Notes: --

Pump Housing_VT130_G8, G9
Pos. 2530
Material: SS
Specification / Size: OD 5", ASME/DIN11866_C
Notes: --

Dowel Pin for Pump Face & Housing_VT70, VT104, VT130_G7, G8, G9
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --

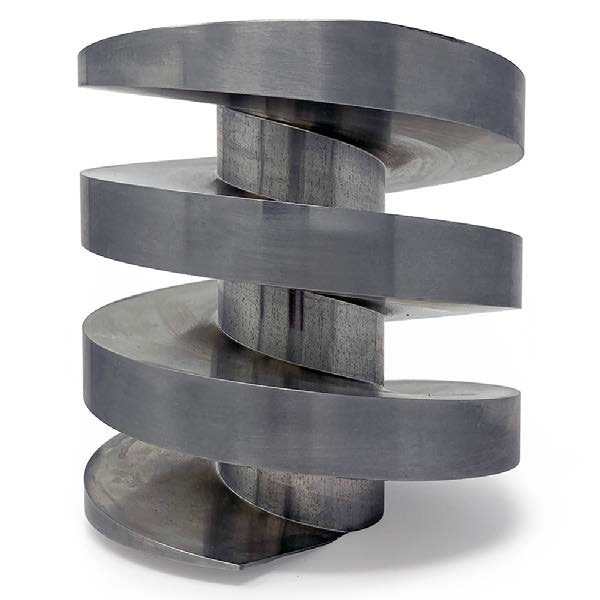

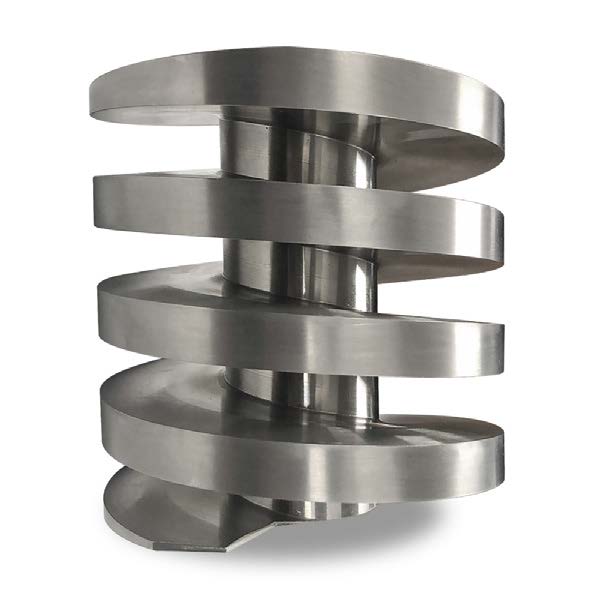

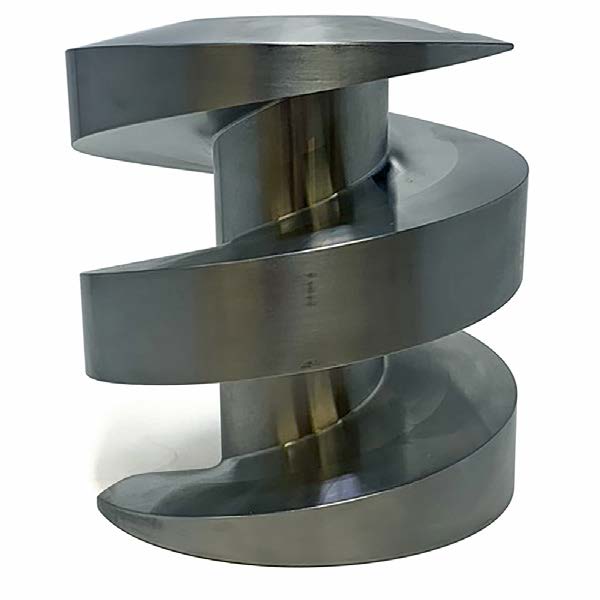

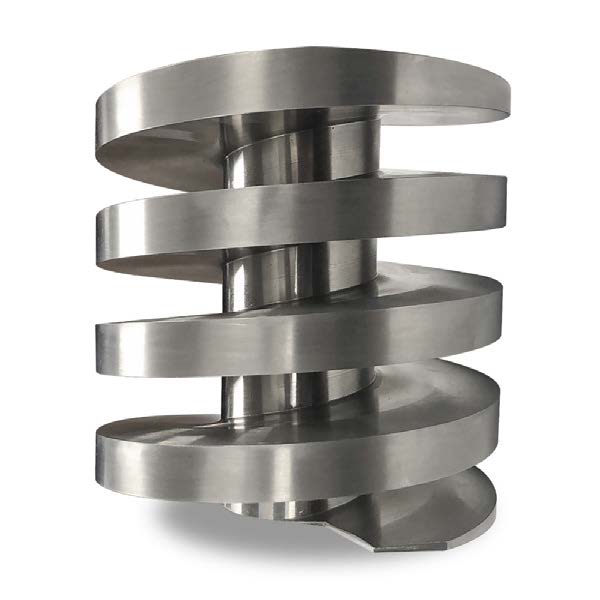

Spindle Left Handed_G7, G8_VT130.33SEH
Pos. 2200
Material: 316L
Specification / Size: 33mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.33S3A
Pos. 2200
Material: 316L
Specification / Size: 33mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.33HEH
Pos. 2200
Material: 316L
Specification / Size: 33mm, EH, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.33H3A
Pos. 2200
Material: 316L
Specification / Size: 33mm, 3A, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.44SEH
Pos. 2200
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44S3A
Pos. 2200
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44HEH
Pos. 2200
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.44H3A
Pos. 2200
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65SEH
Pos. 2200
Material: 316L
Specification / Size: 65mm, EH, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65S3A
Pos. 2200
Material: 316L
Specification / Size: 65mm, 3A, Standard
Notes: --

Spindle Left Handed_G7, G8_VT130.65HEH
Pos. 2200
Material: 316L
Specification / Size: 65mm, EH, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.65H3A
Pos. 2200
Material: 316L
Specification / Size: 65mm, 3A, Hardened
Notes: --

Spindle Left Handed_G7, G8_VT130.33HTEH
Pos. 2200
Material: 316L
Specification / Size: 33mm, Hardened, Tapered, EH
Notes: --

Spindle Left Handed_G7, G8_VT130.33HT3A
Pos. 2200
Material: 316L
Specification / Size: 33mm, Hardened, Tapered, 3A
Notes: --

Spindle Left Handed_G7, G8_VT130.44HTEH
Pos. 2200
Material: 316L
Specification / Size: 44mm, Hardened, Tapered, EH
Notes: --

Spindle Left Handed_G7, G8_VT130.44HT3A
Pos. 2200
Material: 316L
Specification / Size: 44mm, Hardened, Tapered, 3A
Notes: --

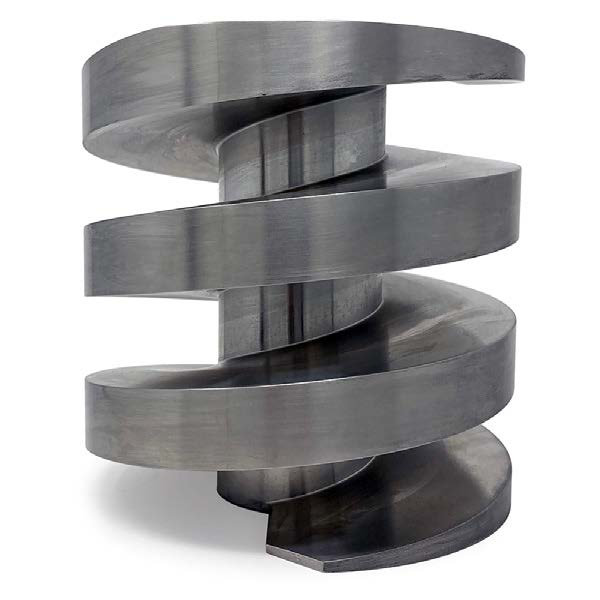

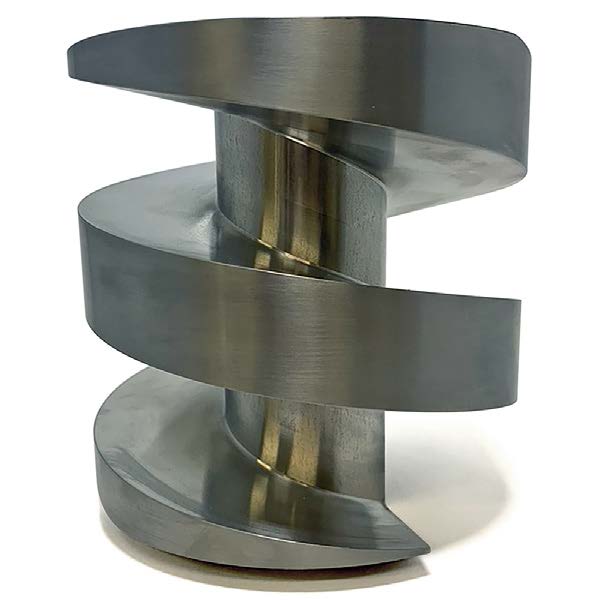

Spindle Right Handed_G7, G8_VT130.33SEH
Pos. 2201
Material: 316L
Specification / Size: 33mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.33S3A
Pos. 2201
Material: 316L
Specification / Size: 33mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.33HEH
Pos. 2201
Material: 316L
Specification / Size: 33mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.33H3A
Pos. 2201
Material: 316L
Specification / Size: 33mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.44SEH
Pos. 2201
Material: 316L
Specification / Size: 44mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.44S3A
Pos. 2201
Material: 316L
Specification / Size: 44mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.44HEH
Pos. 2201
Material: 316L
Specification / Size: 44mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.44H3A
Pos. 2201
Material: 316L
Specification / Size: 44mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.65SEH
Pos. 2201
Material: 316L
Specification / Size: 65mm, EH, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.65S3A
Pos. 2201
Material: 316L
Specification / Size: 65mm, 3A, Standard
Notes: --

Spindle Right Handed_G7, G8_VT130.65HEH
Pos. 2201
Material: 316L
Specification / Size: 65mm, EH, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.65H3A
Pos. 2201
Material: 316L
Specification / Size: 65mm, 3A, Hardened
Notes: --

Spindle Right Handed_G7, G8_VT130.33HTEH
Pos. 2201
Material: 316L
Specification / Size: 33mm, Hardened, Tapered, EH
Notes: --

Spindle Right Handed_G7, G8_VT130.33HT3A
Pos. 2201
Material: 316L
Specification / Size: 33mm, Hardened, Tapered, 3A
Notes: --

Spindle Right Handed_G7, G8_VT130.44HTEH
Pos. 2201
Material: 316L
Specification / Size: 44mm, Hardened, Tapered, EH
Notes: --

Spindle Right Handed_G7, G8_VT130.44HT3A
Pos. 2201
Material: 316L
Specification / Size: 44mm, Hardened, Tapered, 3A
Notes: --

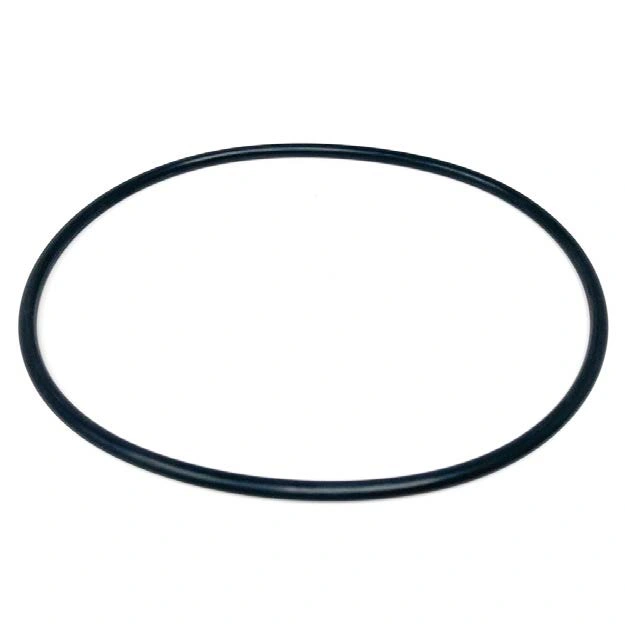

O-Ring Seal Housing_VT130_G7, G8, G9
Pos. 1088
Material: FKM
Specification / Size: DIN3771, 180x6.0
Notes: --

O-Ring Seal Housing_VT130_G7, G8, G9
Pos. 1088
Material: EPDM
Specification / Size: DIN3771, 180x6.0
Notes: --

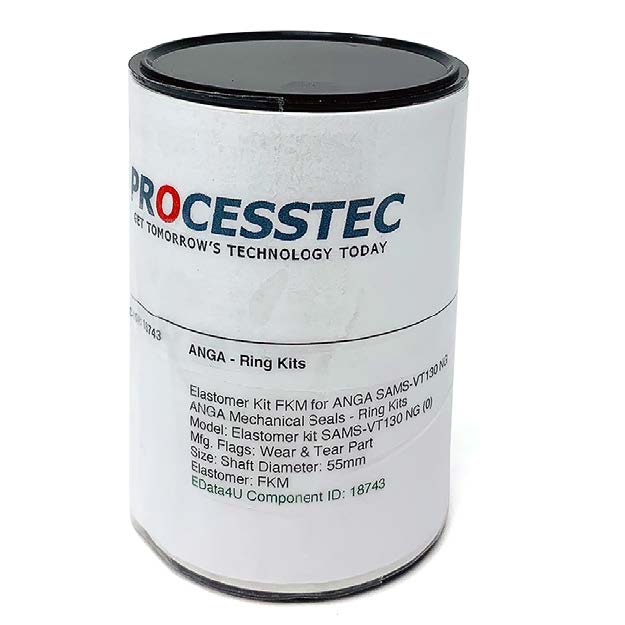

Elastomer Kit DAMS_VT130_G8, G9
Pos. 2535 EK
Material: FKM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G8, G9
Pos. 2535 EK
Material: EPDM
Specification / Size: ANGA, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G8, G9
Pos. 2535 EK
Material: FKM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G8, G9
Pos. 2535 EK
Material: EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

Elastomer Kit DAMS_VT130_G8, G9_H
Pos. 2535 EK
Material: V70SW
Specification / Size: HUHNSEAL, SD: 55mm
Notes: --

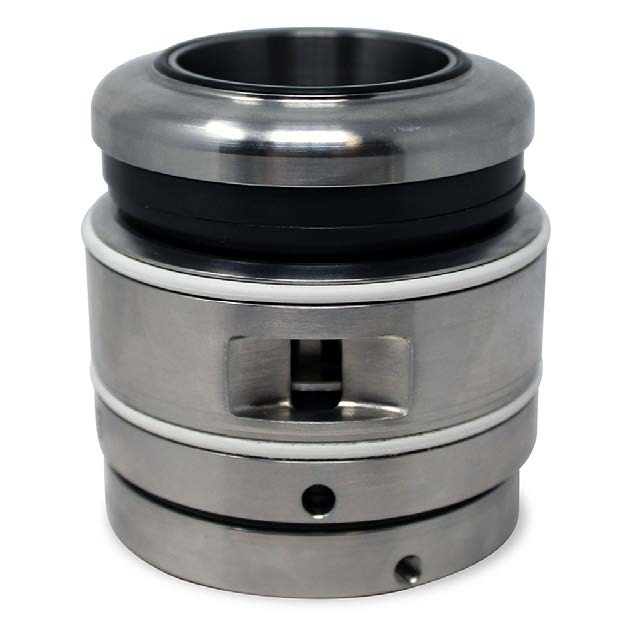

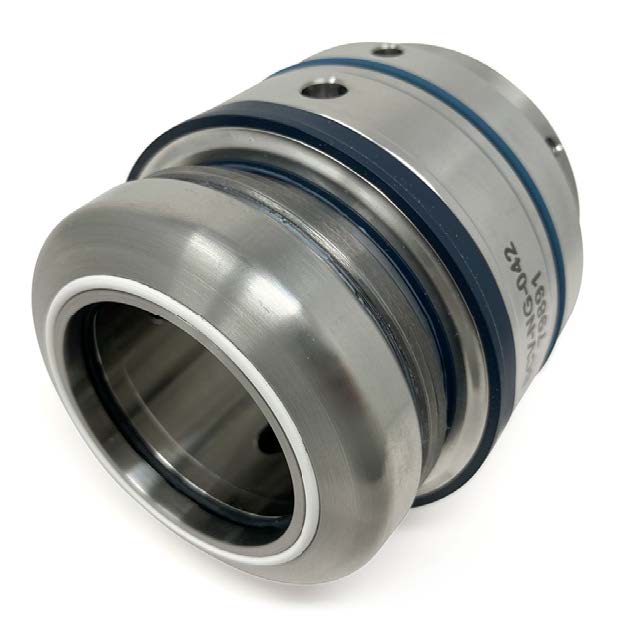

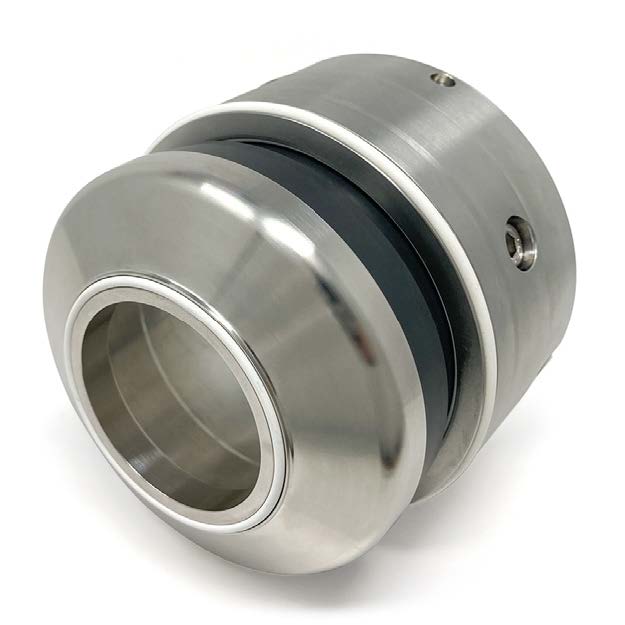

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D3
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D3
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D4
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 55mm
Customer Reference: D4
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC_TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 55mm
Customer Reference: DX3
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC_TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 55mm
Customer Reference: DX3
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D1
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D1
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D2
Notes: --

Mechanical Seal DAMS_VT130_G8, G9
Pos. 2535
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 55mm
Customer Reference: D2
Notes: --

Key for Coupling_VT130_G7, G8, G9
Pos. 1183
Material: 304
Specification / Size: DIN6885-AS, 10x8x45
Notes: --

Shaft Sealing Ring Bearing Housing_VT130_G8, G9
Pos. 2322
Material: FKM
Specification / Size: DIN3760-AS, 65x80x8
Notes: --

Dowel Pin for Seal Housing Alignment_VT104, VT130_G8, G9
Pos. 2536
Material: 304
Specification / Size: DIN7, 8h8x24
Notes: --

Shaft Sealing Ring Gear Housing_VT130_G8, G9
Pos. 1010
Material: FKM
Specification / Size: DIN3760-AS, 42x55x8, SD: 55mm
Notes: --

Magnetic Screw Plug_VT70, VT104, VT130_G8, G9
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G3/4"
Notes: --

Gasket for Sight Gauge_Magnet Plug
Pos. 2233, 2360
Material: FKM
Specification / Size: --
Notes: In sets of 5 pcs.

Oil Level Sight Gauge_VT70, VT104, VT130_G7, G8, G9
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --

Gasket for Sight Gauge_Magnet Plug
Pos. 2233, 2360
Material: FKM
Specification / Size: --
Notes: In sets of 5 pcs.

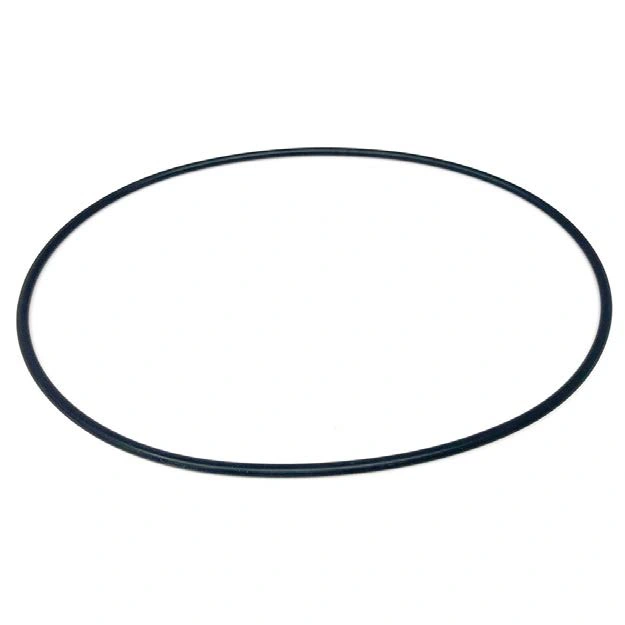

O-Ring Large for Gear Housing_VT130_G8, G9
Pos. 2514
Material: FKM
Specification / Size: DIN3771, 278x4.0
Notes: --

O-Ring Small for Gear Housing_VT130_G8, G9
Pos. 2514
Material: FKM
Specification / Size: DIN3771, 25x2.0
Notes: --

Gear Oil Bearing Housing VT
Pos. --
Material: --
Specification / Size: 1 L
Notes: --

Coupling Hub Pump_VT130_G8, G9
Pos. 2247
Material: Aluminium
Specification / Size: BS: 35mm
Notes: --

Coupling Hub Pump VT104 G8, G9
Pos. 2247
Material: STO
Specification / Size: SD:28mm, R+W
Notes: --

Motor Coupler 42/55 NEMA 21X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-3/8“
Notes: --

Motor Coupler 42/55 NEMA 25X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-5/8“
Notes: --

Motor Coupler 42/55 NEMA 28X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-7/8“
Notes: --

Motor Coupler 42/55 NEMA 32X
Pos. 2248
Material: Aluminium
Specification / Size: BS:2-1/8“
Notes: --

Motor Coupler 42/55 NEMA 36X
Pos. 2248
Material: Aluminium
Specification / Size: BS:2-3/8“
Notes: --

Coupling Hub Pump VT104 G8, G9
Pos. 2248
Material: Aluminium
Specification / Size: SD:1-3/8“ R+W
Notes: --

Coupling Hub Pump VT104 G8, G9
Pos. 2248
Material: Aluminium
Specification / Size: SD:1-5/8“ R+W
Notes: --

Coupling Hub Pump VT104 G8, G9
Pos. 2248
Material: Aluminium
Specification / Size: SD:1-7/8“ R+W
Notes: --

Coupling Hub Pump VT104 G8, G9
Pos. 2248
Material: Aluminium
Specification / Size: SD:2-1/8“ R+W
Notes: --

Coupling Spider_VT104, VT130_G8, G9
Pos. 2249
Material: PU
Specification / Size: 98 42/55-Red
Notes: --

Coupling Spider VT104, VT130 G8, G9
Pos. 2249
Material: TPU
Specification / Size: Servomax EK-150, R+W
Notes: --

W22 Severe Duty (VT70, VT104, VT130)
Pos. 3003
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: OD1/4“/P2:1/4“ BSP
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:OD1/4“
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:OD1/4“
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/8“ BSP
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/4“ BSP
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:3/8“ NPT/P2:OD1/4“
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:1/4“ BSP
Notes: --

SS-400_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1863
Material: 316
Specification / Size: P1:OD1/4“/P2:3/8“ BSP
Notes: --

SS-600_Seal Water Fitting_VT70, VT104, VT130_G8, G9
Pos. 1864
Material: 316
Specification / Size: P1:OD3/8“/P2:1/4“ BSP
Notes: --

Seal Housing_VT130_G8, G9
Pos. 2188
Material: 316L
Specification / Size: 3A
Notes: --

Hex Socket Screw for Seal Housing_VT70, VT104, VT130_G8, G9
Pos. 2259
Material: SS
Specification / Size: DIN912-M6x20
Notes: --

Fixing Hex Bolt for Mechanical Seal_VT130_G8, G9
Pos. 2533
Material: 304
Specification / Size: fixing screw
Notes: --

Fixing Hex Bolt for Mechanical Seal_VT104_G8, G9
Pos. 2538
Material: 304
Specification / Size: ISO2338- 3h8x12
Notes: --

Washer for Seal Housing Bolt_VT70, VT104, VT130_G7, G8, G9
Pos. 2539
Material: SS
Specification / Size: DIN9021-A 4.3
Notes: --

Dowel Pin Retaining Screw_VT70, VT104, VT130_G8, G9
Pos. 2540
Material: 304
Specification / Size: ISO4017-M4x8
Notes: --

Safety Guard Right_VT104, VT130_G8, G9
Pos. 2546
Material: SS
Specification / Size: GRD, right
Notes: --

Safety Guard Left_VT104, VT130_G8, G9
Pos. 2547
Material: SS
Specification / Size: GRD, left
Notes: --

Hex Bolt for Protection Shield_VT70, VT104, VT130_G8, G9
Pos. 2532
Material: SS
Specification / Size: ISO4017-M4x10
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:6mm
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:8mm
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:10mm
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/2"/PC:OD1/2"
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:3/8“/VS:1/4“
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/4“ IPS
Notes: --

SS-1 Needle Valve
Pos. 3010
Material: H1:316
Specification / Size: H1:1/4“
Notes: --

Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3011
Material: 316
Specification / Size: T:OD1/4“
Notes: --

Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3012
Material: 316
Specification / Size: T:OD3/8“
Notes: --

Seal Water Tubing_VT70, VT104, VT130_G8, G9
Pos. 3013
Material: 316
Specification / Size: T:OD3/8“
Notes: --

SM4100
Pos. 3013
Material: 316
Specification / Size: AC:1/4“ BSP
Notes: --

EVC004 Right Angle Connector Cable
Pos. 3014A
Material: FKM
Specification / Size: --
Notes: --

6213
Pos. 3015
Material: 316L, EPDM
Specification / Size: H1:1/4“ NPT/VS:10mm
Notes: Buerkert Solenoid Valve

Drive Shaft_VT130_G8, G9
Pos. 1000
Material: 316L
Specification / Size: replaceable sleeves
Notes: --

Drive Shaft_VT130_G8, G9
Pos. 1000
Material: 316L
Specification / Size: non-replaceable sleeves
Notes: --

Driven Shaft_VT130_G8, G9
Pos. 2171
Material: 316L
Specification / Size: non-replaceable sleeves
Notes: --

Drive Shaft_VT130_G8, G9
Pos. 2171
Material: 316L
Specification / Size: replaceable sleeves
Notes: --

Bearing Housing_VT130_G8, G9
Pos. 1001
Material: Cl
Specification / Size: RAL5005, painted blue, 3-leg
Notes: --

Bearing Housing_VT130_G8, G9
Pos. 1001
Material: SS
Specification / Size: Stainless Steel Cast
Notes: --

Needle Roller Bearing_VT130_G7, G8, G9
Pos. 1003
Material: --
Specification / Size: --
Notes: --

Locking Snap Ring_VT130_G7, G8, G9
Pos. 1009
Material: Steel
Specification / Size: AV 58x2
Notes: --

Hex Bolt for Bearing Housing_VT130_G8, G9
Pos. 1016/2258
Material: SS
Specification / Size: ISO4017, M20x65
Notes: --

Outer Spacer Ring for Ball Bearing_VT130_G7, G8, G9
Pos. 1121
Material: SS
Specification / Size: outside
Notes: --

Inner Spacer Ring for Ball Bearing_VT130_G7, G8, G9
Pos. 1530
Material: SS
Specification / Size: inside
Notes: --

Spacer Sleeve for Bearings_VT130_G7, G8, G9
Pos. 1529
Material: CS
Specification / Size: --
Notes: --

Angular Ball Bearing_VT130_G7, G8, G9
Pos. 2181
Material: --
Specification / Size: --
Notes: --

Key for Shaft_VT130_G8, G9
Pos. 2179
Material: SS
Specification / Size: DIN6885-AS, 14x9x32
Notes: --

O-Ring for Pump Face_VT130_G7, G8, G9
Pos. 2192
Material: FKM
Specification / Size: 186.5x4mm
Notes: --

O-Ring for Pump Face_VT130_G7, G8, G9
Pos. 2192
Material: EPDM
Specification / Size: 186.5x4mm
Notes: --

Press Ring Gear Wheel Driven Shaft_VT104_G8, G9
Pos. 2178
Material: SS
Specification / Size: --
Notes: --

Hex Socket Screw Bearing Cover_VT70, 104, 130_G7, G8, G9
Pos. 1008
Material: Steel-12.9
Specification / Size: DIN912-M 8x20
Notes: --

Bearing Cover_VT130_G7, G8, G9
Pos. 1227
Material: --
Specification / Size: --
Notes: --

Drive Shaft Gear Wheel Nut_VT130_G7, G8, G9
Pos. 1526
Material: SS
Specification / Size: SKF, KMFE 9, M45x1.5
Notes: --

Gear Housing_VT130_G8, G9
Pos. 2172
Material: CI
Specification / Size: RAL5005, Housing NO Gapping Port
Notes: --

Gear Housing_VT130_G8, G9
Pos. 2172
Material: SS
Specification / Size: Housing with Gapping Port
Notes: --

Blind Plug_VT130_G8, G9_SS
Pos. 3100
Material: 304
Specification / Size: 50mm
Notes: --

Gear Wheel Collar Driven Shaft_VT130_G8, G9
Pos. 2176
Material: Steel
Specification / Size: --
Notes: --

Hex Bolt for Driven Shaft_VT104, VT130_G8, G9
Pos. 2177
Material: Steel 12.9
Specification / Size: ISO4017-M16x50
Notes: --

Gear Wheel Drive Shaft_VT104_G8, G9
Pos. 2183
Material: 5115 hardened
Specification / Size: 49teeth, w=36.5mm, module 1.5
Notes: --

Gear Wheel Driven Shaft_VT130_G8, G9
Pos. 2184
Material: 5115 hardened
Specification / Size: 58 teeth, b=20mm, module 1.5
Notes: --

Hex Socket Screw for Gear Cover_VT130_G8, G9
Pos. 2186
Material: Steel 12.9
Specification / Size: DIN912, M6x30
Notes: --

Washer for Bearing Cover Screw_VT130_G7, G8, G9
Pos. 2326
Material: SS
Specification / Size: --
Notes: --

Gear Synchronization Lock Ring_VT130_G8, G9
Pos. 2515
Material: CS
Specification / Size: --
Notes: --

G8, G9-IEC180 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-IEC180 Frame
Notes: --

G8, G9-IEC200 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-IEC200 Frame
Notes: --

G8, G9-NEMA180-250 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA180-250 Frame DWG 7.38-NGLA-N250
Notes: --

G8, G9-NEMA280 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA280 Frame DWG 20200426-01
Notes: --

G8, G9-NEMA320 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA320 Frame DWG 20200424-01 Vesion B
Notes: --

G8, G9-NEMA360 Lantern
Pos. 3000
Material: 304
Specification / Size: VTG8, G9-NEMA360 Frame DWG 20200920-01 Vesion E
Notes: --

Pump Flange Pin_VT70, VT104, VT130_G7, G8, G9
Pos. 2516
Material: SS
Specification / Size: 8mm, OD 8x20
Notes: --

Hex Head Screw_M18x2.5x80mm
Pos. 2522
Material: SS
Specification / Size: M18x2.5x80mm
Notes: --

Hex Head Screw_0.5-13x2.25in
Pos. 2522
Material: SS
Specification / Size: 1/2“-13 Thread, 2.25“ Long
Notes: --

Hex Head Screw_0.625-11x2in
Pos. 2522
Material: SS
Specification / Size: 5/8“-11 Thread, 2“ Long, Fully Threaded, Motor Flange Plate Hex Head Screw
Notes: --

Hex Head Screw_0.625-11x2in
Pos. 2522
Material: SS
Specification / Size: 5/8“-11 Thread, 2“ Long, Fully Threaded, Motor Flange Plate Hex Head Screw
Notes: --

Washer_M18
Pos. 2523
Material: Al
Specification / Size: 18mm
Notes: --

Washer_0.5in_SS
Pos. 2523
Material: 304
Specification / Size: 1/2“
Notes: --

Washer_0.625in
Pos. 2523
Material: 316
Specification / Size: 5/8", Motor Flange Plate Washer
Notes: --

Socket Head Cap Screw
Pos. 2525
Material: STG
Specification / Size: 16mm
Notes: --

Lantern Protection Shield VT_G8, G9
Pos. 3001
Material: 304
Specification / Size: --
Notes: --

Cap Nut for Protection Shield Lantern
Pos. 3002
Material: 316
Specification / Size: 3mm
Notes: --
