SP VT70 G7 ML2 ViscoTwin Pumps
SPARE PARTS, VT70 ML2 April 2021

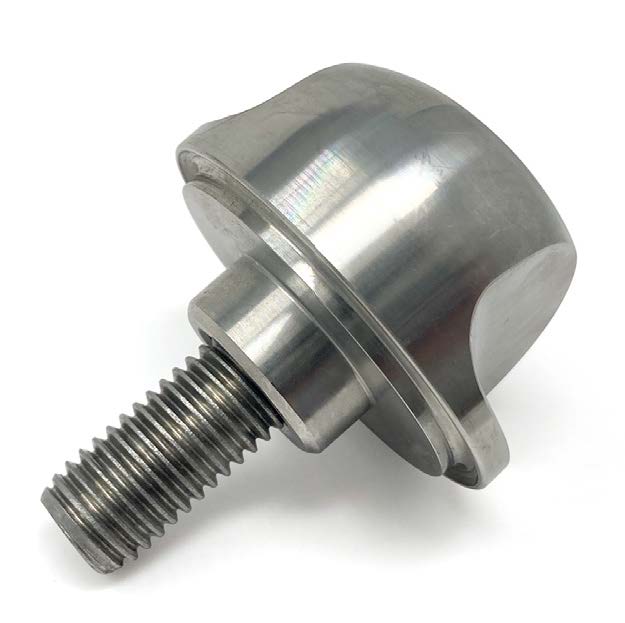

Spindle Screw_VT70_G7, G8, G9
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --
Pos. 2180
Material: 316L
Specification / Size: --
Notes: --

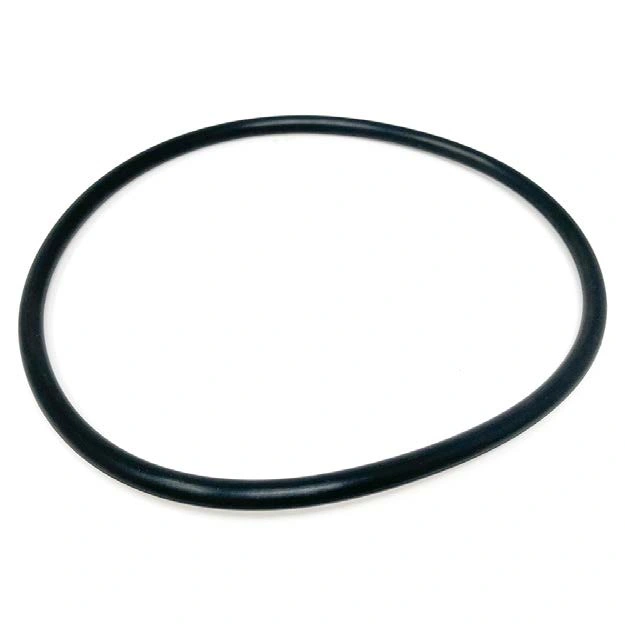

O-Ring for Spindle Screw_VT70_G7, G8, G9
Pos. 2194
Material: FKM
Specification / Size: 38x3mm
Notes: --
Pos. 2194
Material: FKM
Specification / Size: 38x3mm
Notes: --

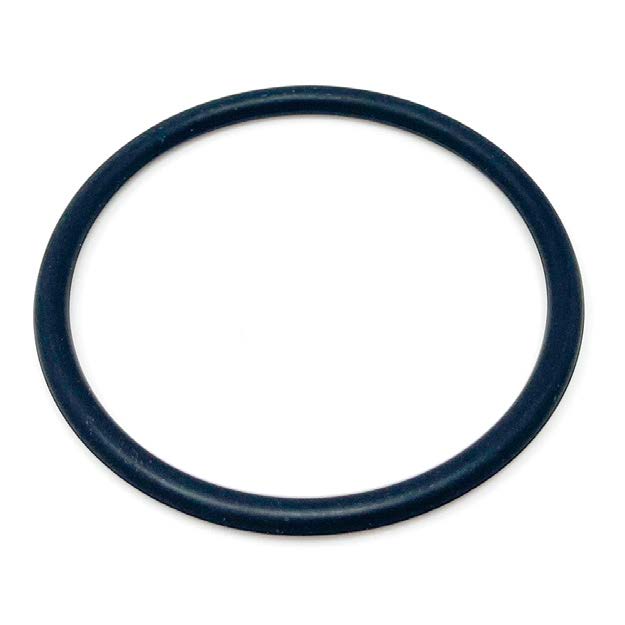

O-Ring for Spindle Screw_VT70_G7, G8, G9
Pos. 2194
Material: EPDM
Specification / Size: 38x3mm
Notes: --
Pos. 2194
Material: EPDM
Specification / Size: 38x3mm
Notes: --
Dowel Pin for Pump Face & Housing_VT70, VT104, VT130_G7, G8, G9
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --
Pos. 2195, 2196
Material: 316L
Specification / Size: DIN7, 8hx8x16mm
Notes: --

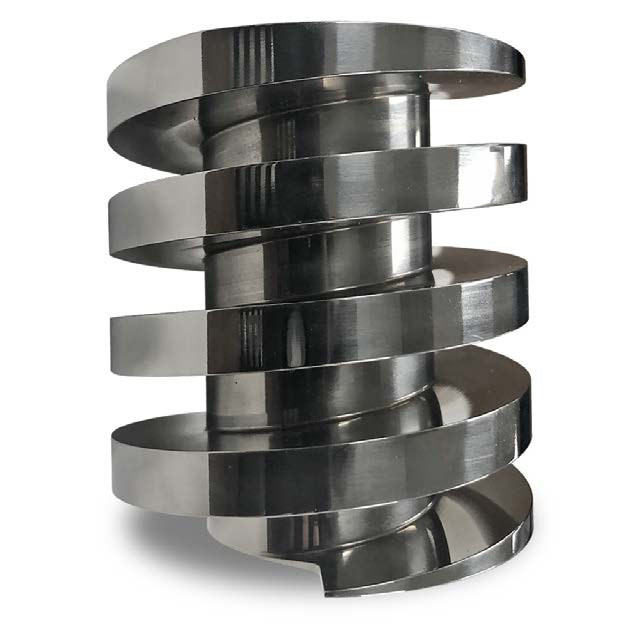

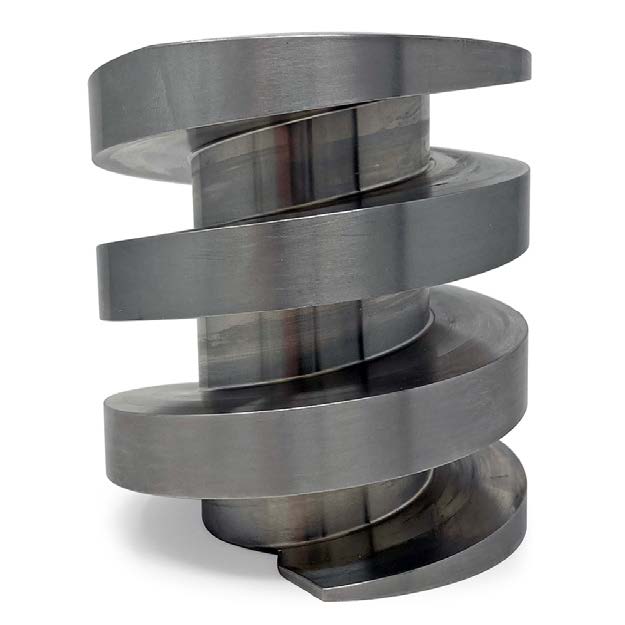

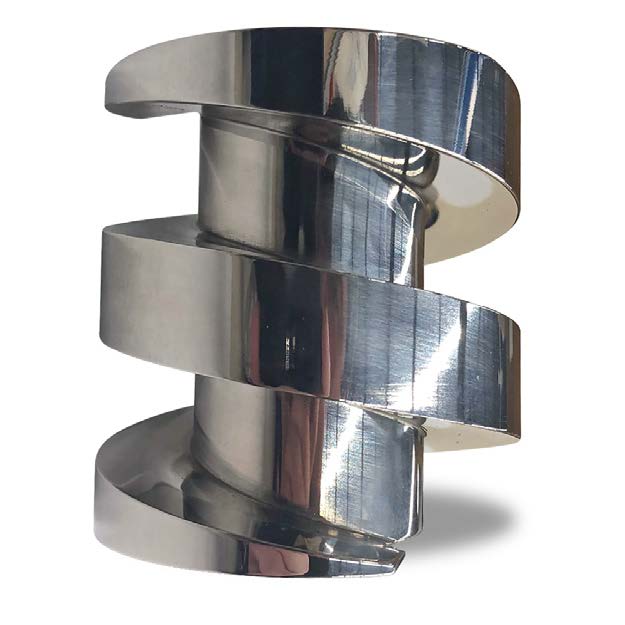

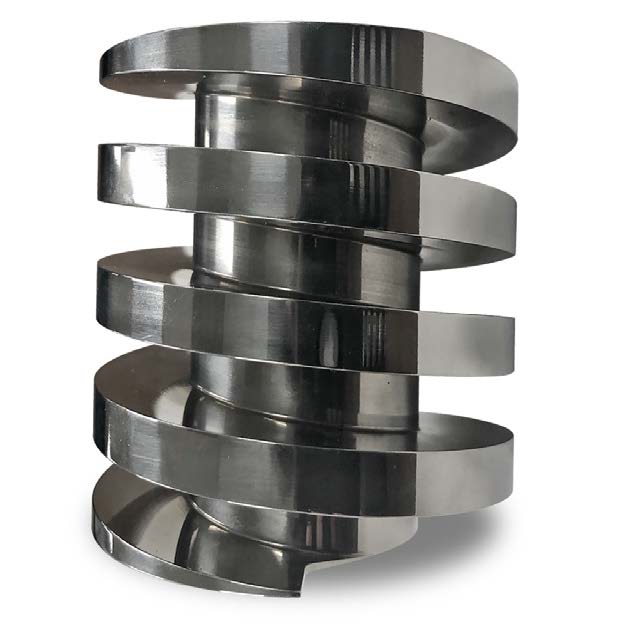

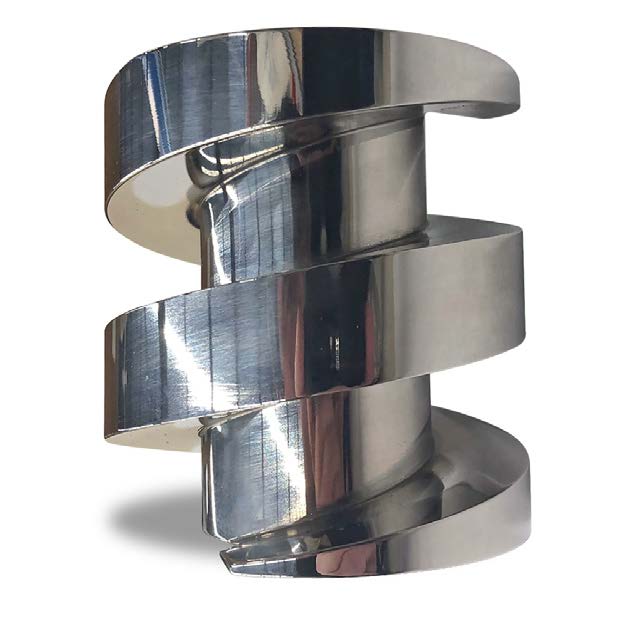

Spindle Left Handed_G7, G8_VT70.22SEH
Pos. 2200
Material: 316L
Specification / Size: 22mm, EH, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 22mm, EH, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.22S3A
Pos. 2200
Material: 316L
Specification / Size: 22mm, 3A, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 22mm, 3A, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.22HEH
Pos. 2200
Material: 316L
Specification / Size: 22mm, EH, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 22mm, EH, Hardened
Notes: --
Spindle Left Handed_G7, G8_VT70.22H3A
Pos. 2200
Material: 316L
Specification / Size: 22mm, 3A, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 22mm, 3A, Hardened
Notes: --
Spindle Left Handed_G7, G8_VT70.29SEH
Pos. 2200
Material: 316L
Specification / Size: 29mm, EH, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 29mm, EH, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.29S3A
Pos. 2200
Material: 316L
Specification / Size: 29mm, 3A, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 29mm, 3A, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.29HEH
Pos. 2200
Material: 316L
Specification / Size: 29mm, EH, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 29mm, EH, Hardened
Notes: --
Spindle Left Handed_G7, G8_VT70.29H3A
Pos. 2200
Material: 316L
Specification / Size: 29mm, 3A, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 29mm, 3A, Hardened
Notes: --
Spindle Left Handed_G7, G8_VT70.43SEH
Pos. 2200
Material: 316L
Specification / Size: 43mm, EH, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 43mm, EH, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.43S3A
Pos. 2200
Material: 316L
Specification / Size: 43mm, 3A, Standard
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 43mm, 3A, Standard
Notes: --
Spindle Left Handed_G7, G8_VT70.43HEH
Pos. 2200
Material: 316L
Specification / Size: 43mm, EH, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 43mm, EH, Hardened
Notes: --
Spindle Left Handed_G7, G8_VT70.43H3A
Pos. 2200
Material: 316L
Specification / Size: 43mm, 3A, Hardened
Notes: --
Pos. 2200
Material: 316L
Specification / Size: 43mm, 3A, Hardened
Notes: --

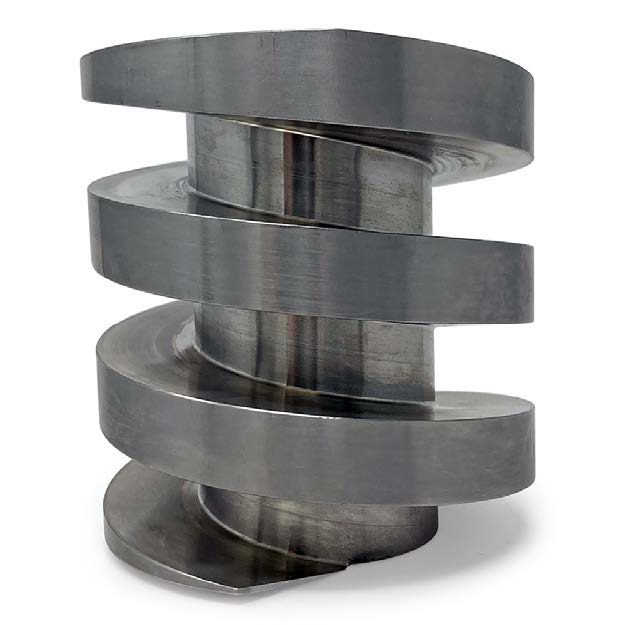

Spindle Right Handed_G7, G8_VT70.22SEH
Pos. 2201
Material: 316L
Specification / Size: 22mm, EH, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 22mm, EH, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.22S3A
Pos. 2201
Material: 316L
Specification / Size: 22mm, 3A, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 22mm, 3A, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.22HEH
Pos. 2201
Material: 316L
Specification / Size: 22mm, EH, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 22mm, EH, Hardened
Notes: --
Spindle Right Handed_G7, G8_VT70.22H3A
Pos. 2201
Material: 316L
Specification / Size: 22mm, 3A, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 22mm, 3A, Hardened
Notes: --
Spindle Right Handed_G7, G8_VT70.29SEH
Pos. 2201
Material: 316L
Specification / Size: 29mm, EH, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 29mm, EH, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.29S3A
Pos. 2201
Material: 316L
Specification / Size: 29mm ,3A, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 29mm ,3A, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.29HEH
Pos. 2201
Material: 316L
Specification / Size: 29mm, EH, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 29mm, EH, Hardened
Notes: --
Spindle Right Handed_G7, G8_VT70.29H3A
Pos. 2201
Material: 316L
Specification / Size: 29mm, 3A, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 29mm, 3A, Hardened
Notes: --
Spindle Right Handed_G7, G8_VT70.43SEH
Pos. 2201
Material: 316L
Specification / Size: 43mm, EH, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 43mm, EH, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.43S3A
Pos. 2201
Material: 316L
Specification / Size: 43mm, 3A, Standard
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 43mm, 3A, Standard
Notes: --
Spindle Right Handed_G7, G8_VT70.43HEH
Pos. 2201
Material: 316L
Specification / Size: 43mm, EH, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 43mm, EH, Hardened
Notes: --
Spindle Right Handed_G7, G8_VT70.43H3A
Pos. 2201
Material: 316L
Specification / Size: 43mm, 3A, Hardened
Notes: --
Pos. 2201
Material: 316L
Specification / Size: 43mm, 3A, Hardened
Notes: --

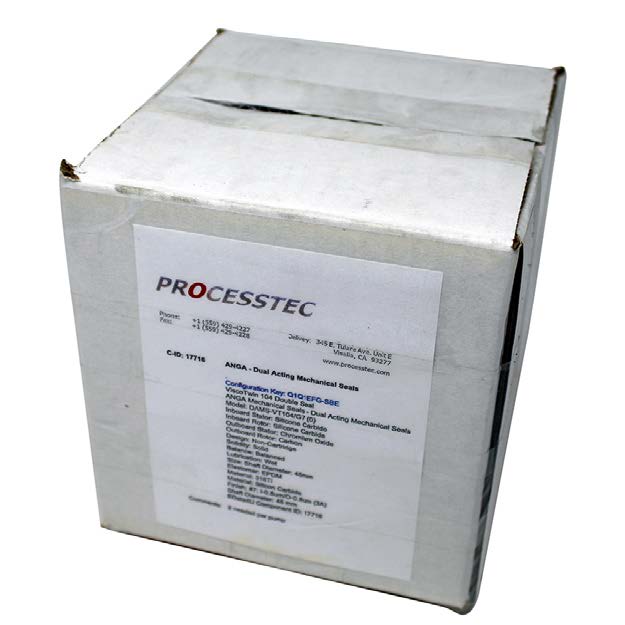

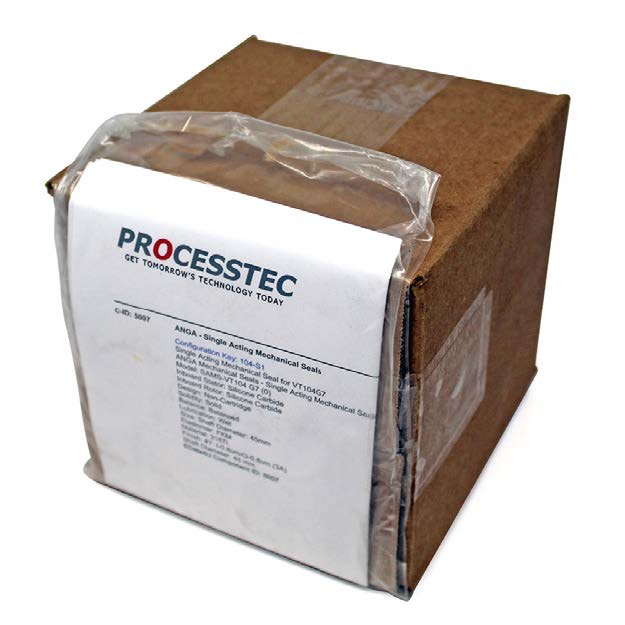

Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D3
Notes: --
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D3
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D3
Notes: --
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D3
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D4
Notes: --
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D4
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D4
Notes: --
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: ANGA, SD: 36mm
Customer Reference: D4
Notes: --
Mechanical Seal DAMS_VT70_G7

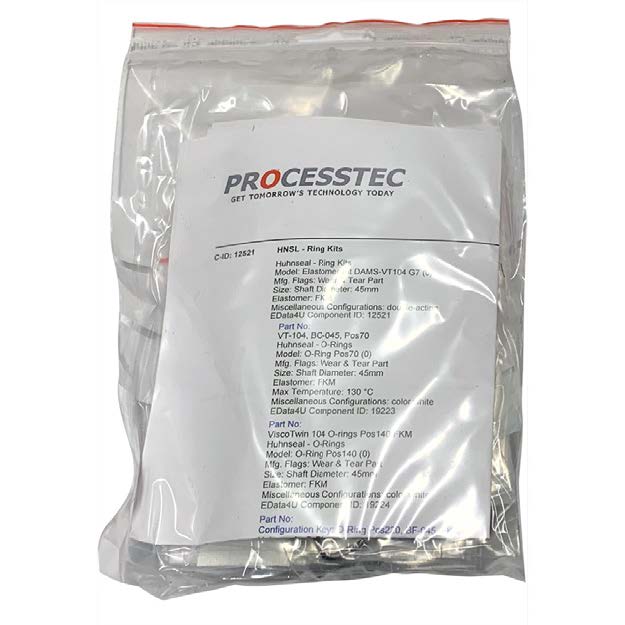

Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D1
Notes: --
Pos. 1303 BC
Material: SIC/SIC, FKM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D1
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D1
Notes: --
Pos. 1303 BC
Material: SIC/SIC, EPDM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D1
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D2
Notes: --
Pos. 1303 BC
Material: TuC/TuCKE, FKM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D2
Notes: --
Mechanical Seal DAMS_VT70_G7
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D2
Notes: --
Pos. 1303 BC
Material: TuC/TuCKE, EPDM
Specification / Size: HUHNSEAL, SD: 36mm
Customer Reference: D2
Notes: --

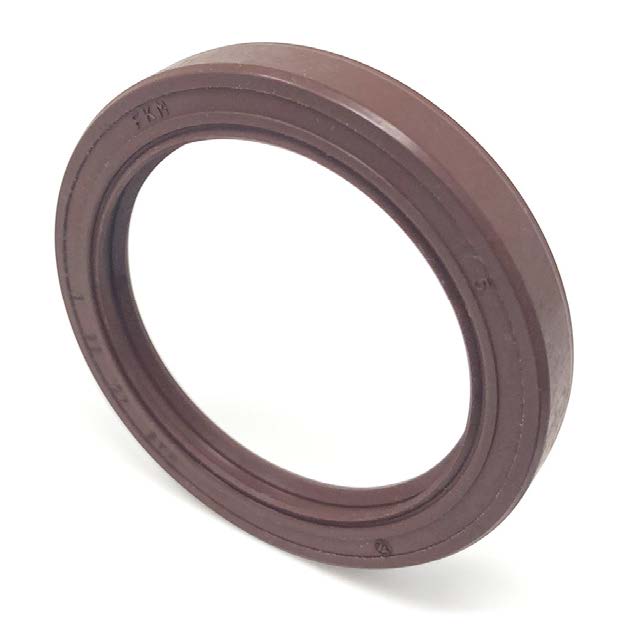

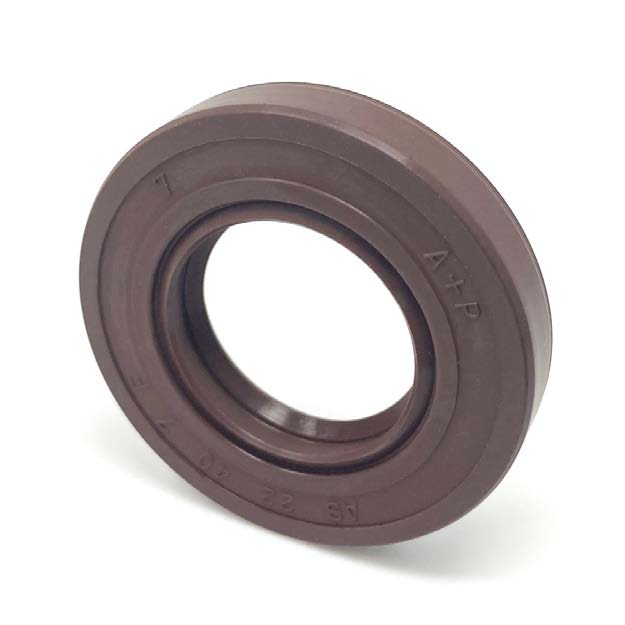

Shaft Sealing Ring Bearing Housing_VT70_G7
Pos. 1111
Material: FKM
Specification / Size: DIN3760-AS, 40x52x8
Notes: --
Pos. 1111
Material: FKM
Specification / Size: DIN3760-AS, 40x52x8
Notes: --

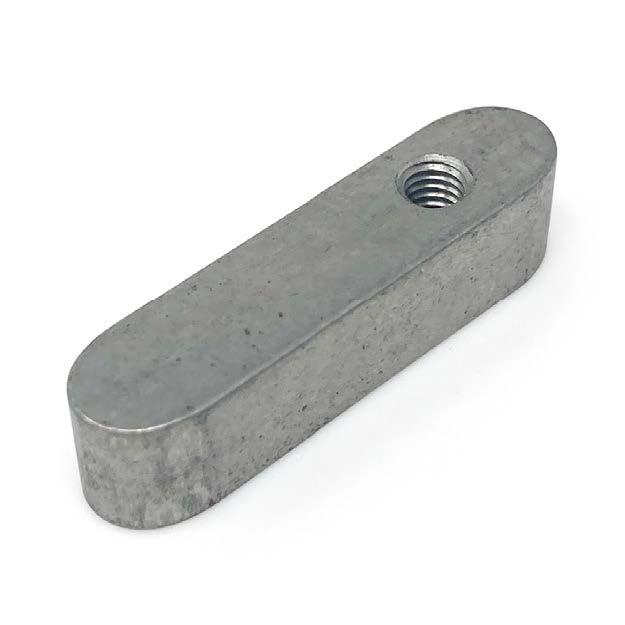

Key for Coupling_VT70_G7, G8, G9
Pos. 1183
Material: 316
Specification / Size: DIN6885-AS, 6x6x25
Notes: --
Pos. 1183
Material: 316
Specification / Size: DIN6885-AS, 6x6x25
Notes: --

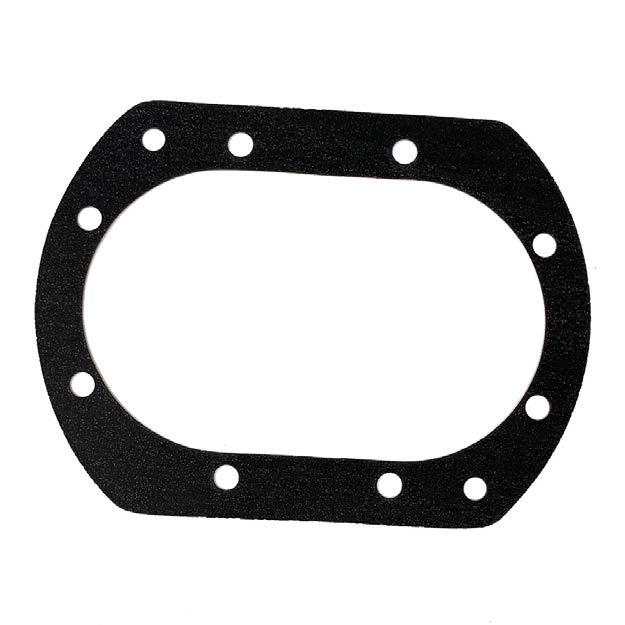

Flat Gasket Gear Housing_VT70_G7
Pos. 2198
Material: --
Specification / Size: 1mm
Notes: --
Pos. 2198
Material: --
Specification / Size: 1mm
Notes: --
Oil Level Sight Gauge_VT70, VT104, VT130_G7, G8, G9
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --
Pos. 2233, 2360
Material: Aluminium, Glass
Specification / Size: G3/4"
Notes: --
Magnetic Screw Plug_VT70, VT104, VT130_G7
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G1/2"
Notes: --
Pos. 2233
Material: Aluminium
Specification / Size: DIN 910, G1/2"
Notes: --
Gear Oil Bearing Housing VT
Pos. --
Material: --
Specification / Size: 1 L
Notes: --
Pos. --
Material: --
Specification / Size: 1 L
Notes: --

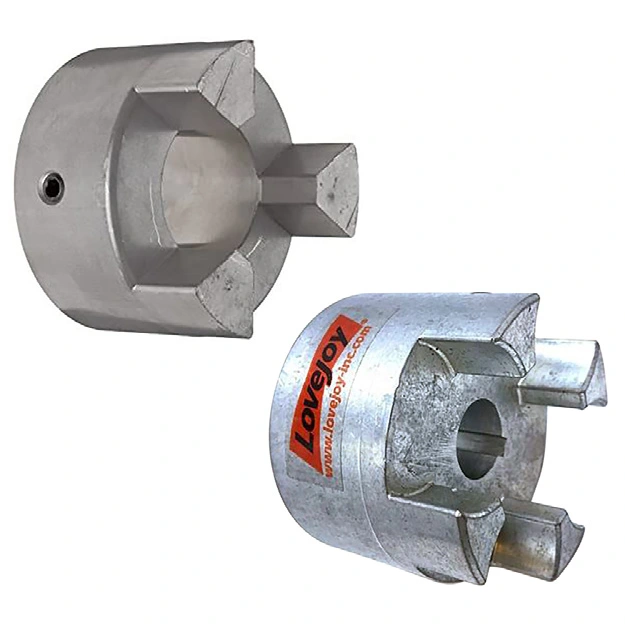

Coupling Hub Pump_AL090_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL090, BS: 20mm
Notes: --
Pos. 2247
Material: Aluminium
Specification / Size: AL090, BS: 20mm
Notes: --
Coupling Hub Pump_AL100_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL100, BS: 20mm
Notes: --
Pos. 2247
Material: Aluminium
Specification / Size: AL100, BS: 20mm
Notes: --
Coupling Hub Pump_AL110_G7
Pos. 2247
Material: Aluminium
Specification / Size: AL110, BS: 20mm
Notes: --
Pos. 2247
Material: Aluminium
Specification / Size: AL110, BS: 20mm
Notes: --
Motor Coupler 42/55 NEMA 21X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-3/8“
Notes: --
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-3/8“
Notes: --
Motor Coupler 42/55 NEMA 25X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-5/8“
Notes: --
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-5/8“
Notes: --
Motor Coupler 42/55 NEMA 28X
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-7/8“
Notes: --
Pos. 2248
Material: Aluminium
Specification / Size: BS:1-7/8“
Notes: --
Coupling Spider_L090_G7
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L090 Solid Type
Notes: --
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L090 Solid Type
Notes: --
Coupling Spider_L100_G7
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L100 Solid Type
Notes: --
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L100 Solid Type
Notes: --
Coupling Spider_L110_G7
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L110 Solid Type
Notes: --
Pos. 2249
Material: Elastomer NBR
Specification / Size: Lovejoy, Model L110 Solid Type
Notes: --
W22 Severe Duty (VT70, VT104, VT130)
Pos. 3003
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements
Pos. 3003
Material: Cl
Specification / Size: variable
Notes: WEG Severe Duty 25 HP, size might change due to application requirements
